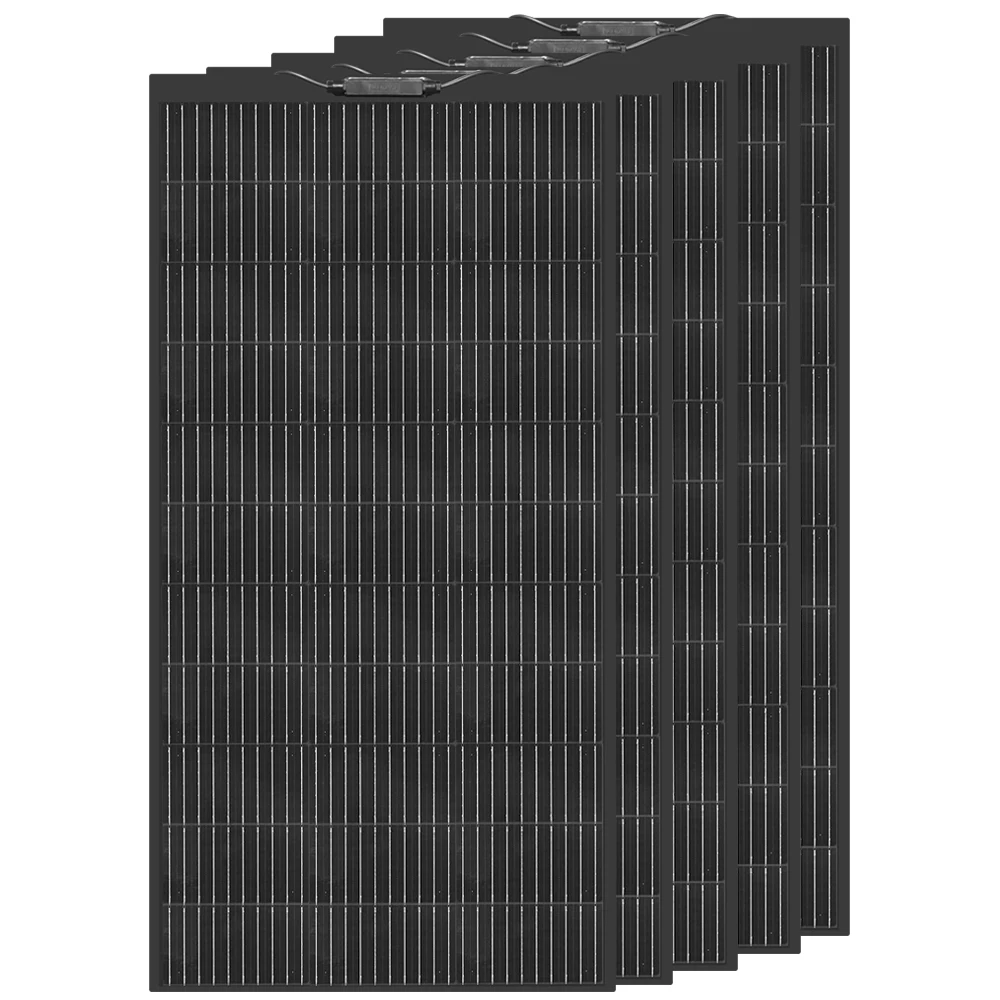

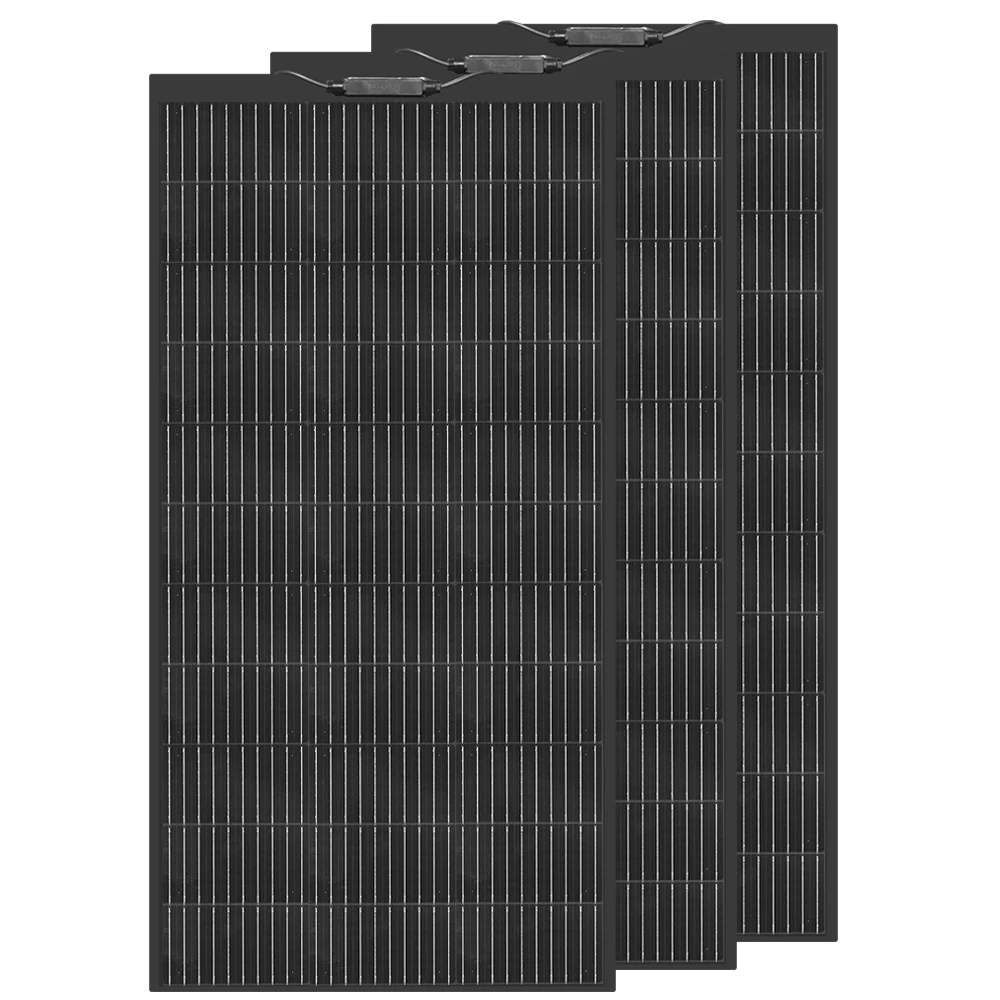

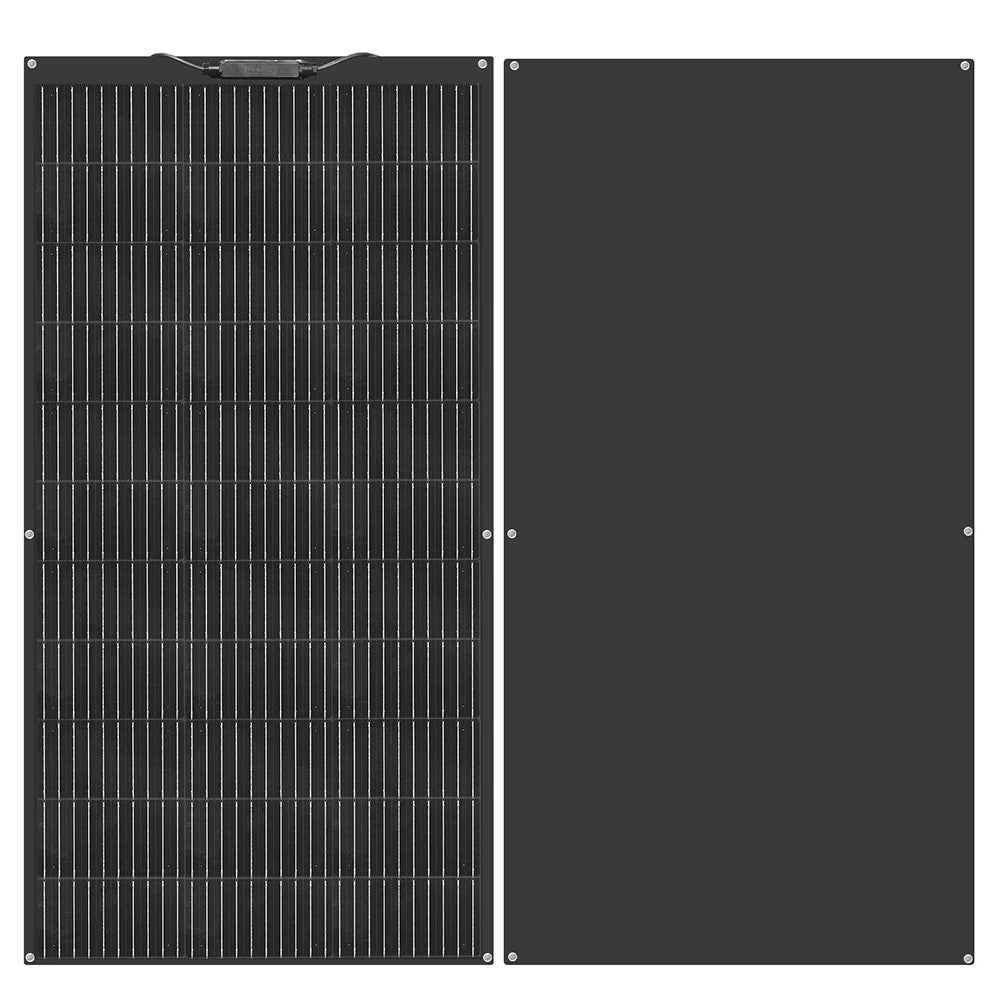

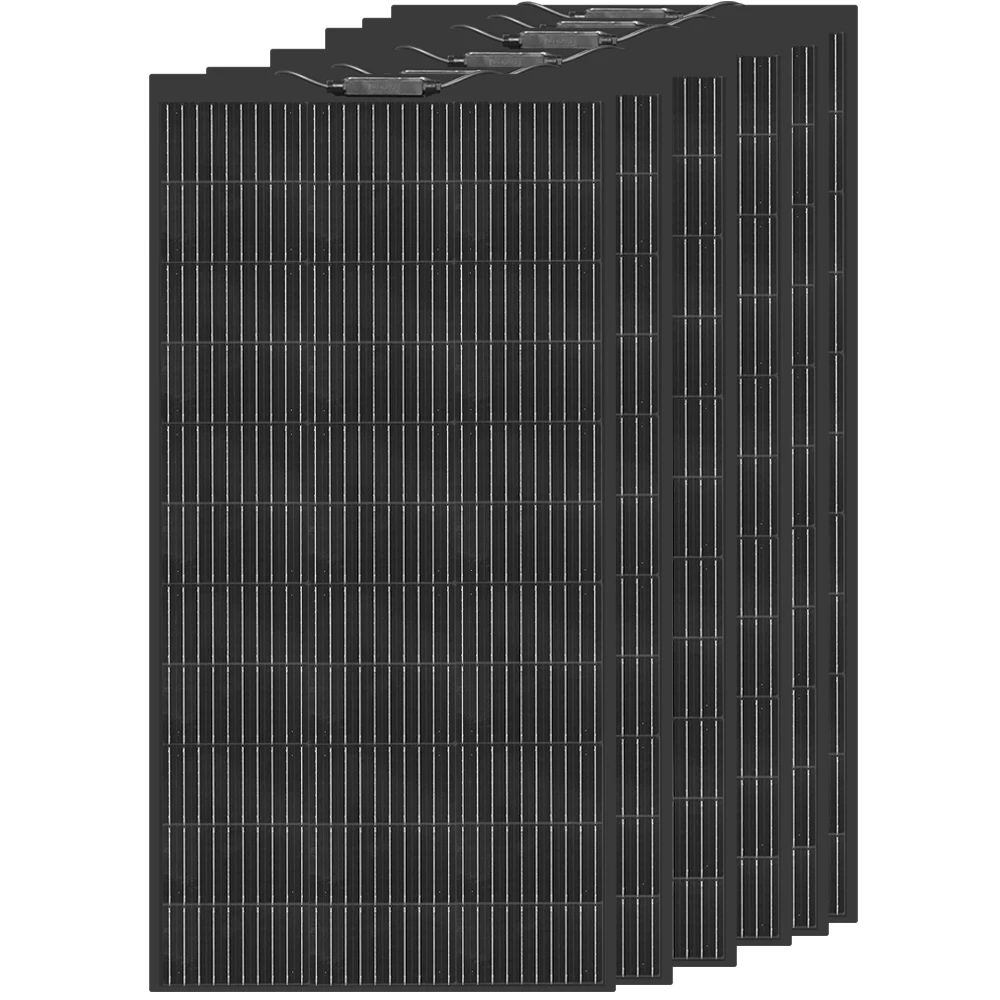

XINPUGUANG 120W - 1200W Flexible Solar Panel Module Monocrystalline Solar Cell PV 240W 360W 480W 600W 720W Solar Panels Charger For 12V 24V Battery Home Boat Marine RV Cabin Van Car Uneven Surfaces

Features:

* Conversion efficiency 23%.
* Generate electricity all day in the sun.
* Can be used for fish tank circulation system, monitoring group, household photovoltaic energy storage,
* Lightweight and easy to install.
* Outdoor photovoltaic power generation portable device.

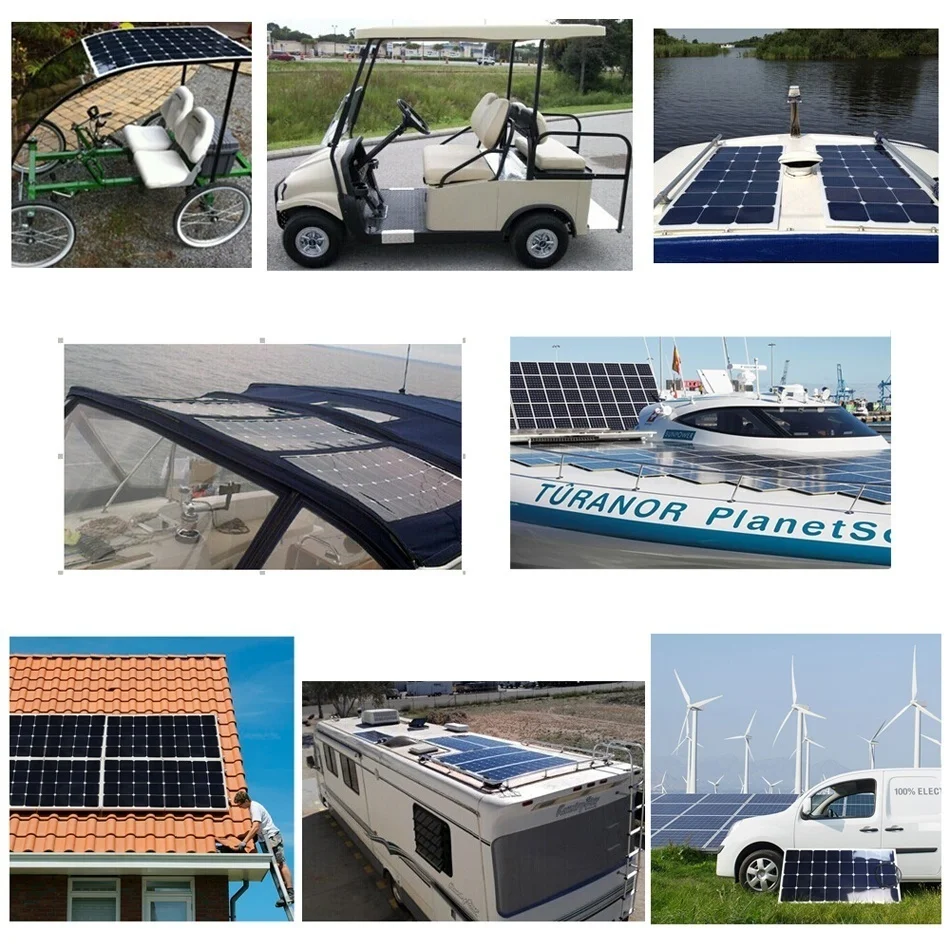

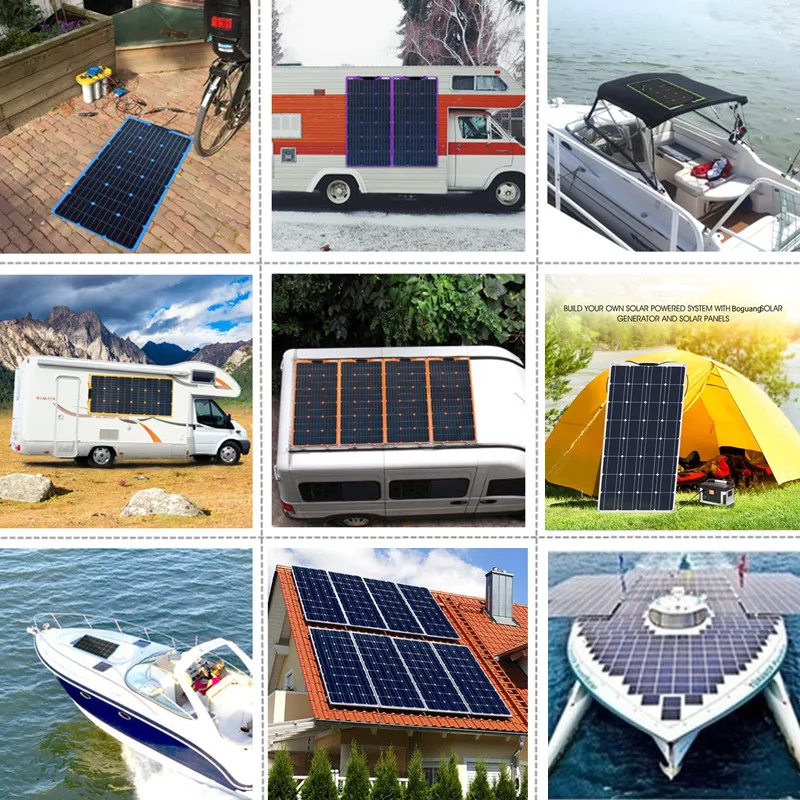

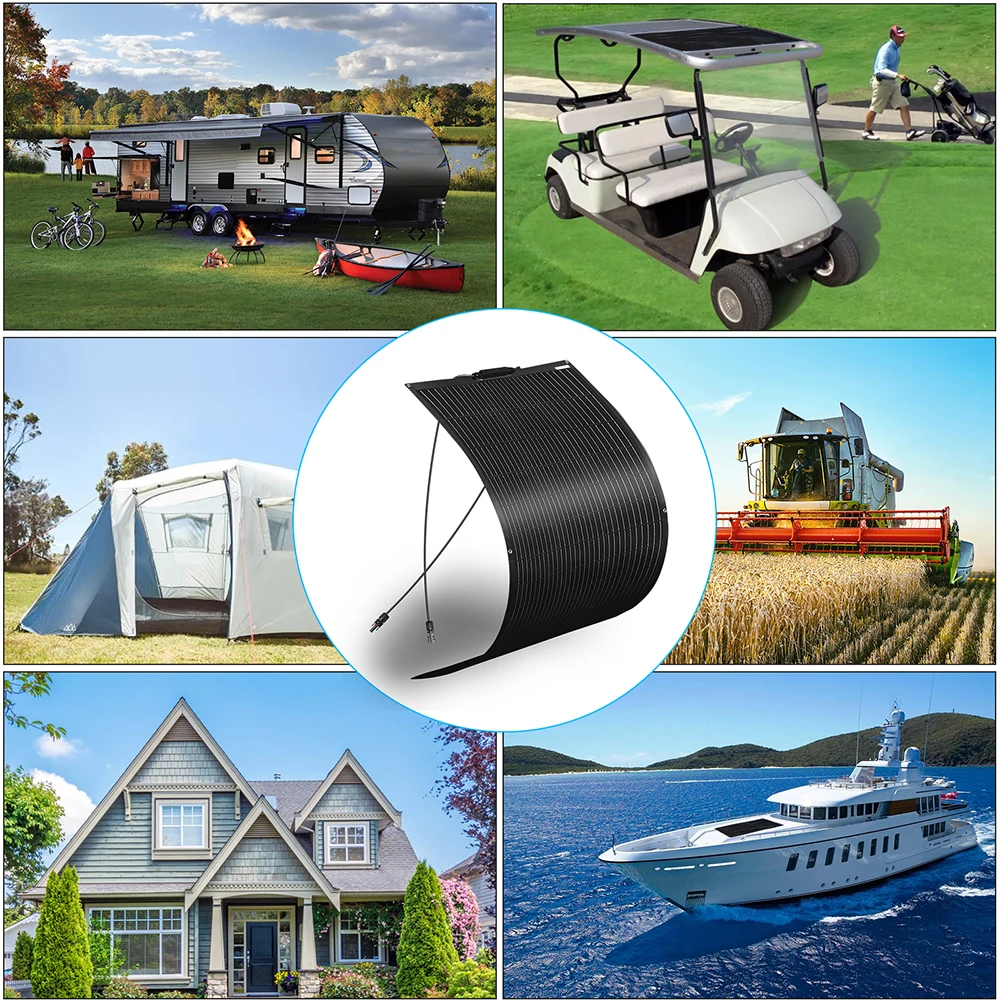

* Wide range of compatibility: sailboats, yachts, marine applications, motorhomes, expedition vehicles, commercial trucks, caravans, off-grid and telematics sites, etc.

18.15V 120W Solar Panel Specification

Maximum power(Pmax) 120W
Output tolerance ± 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.78V
Short circuit current(Isc) 6.9 A
Maximum power voltage(Vmp) 18.15V
Maximum power current(Imp) 6.6A
Cell efficiency 24%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃～+80℃
Number of cells 33pcs
Weight 2060g

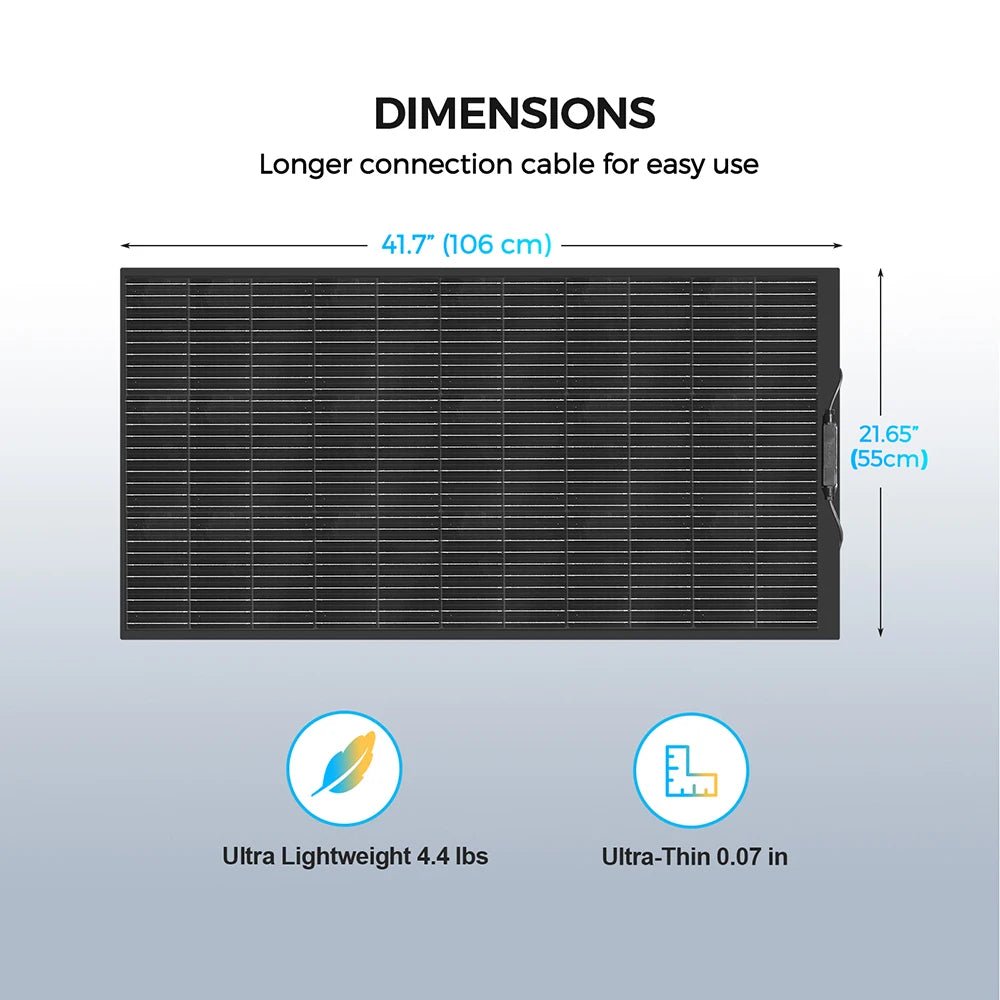

Size 1065*550*3 mm
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

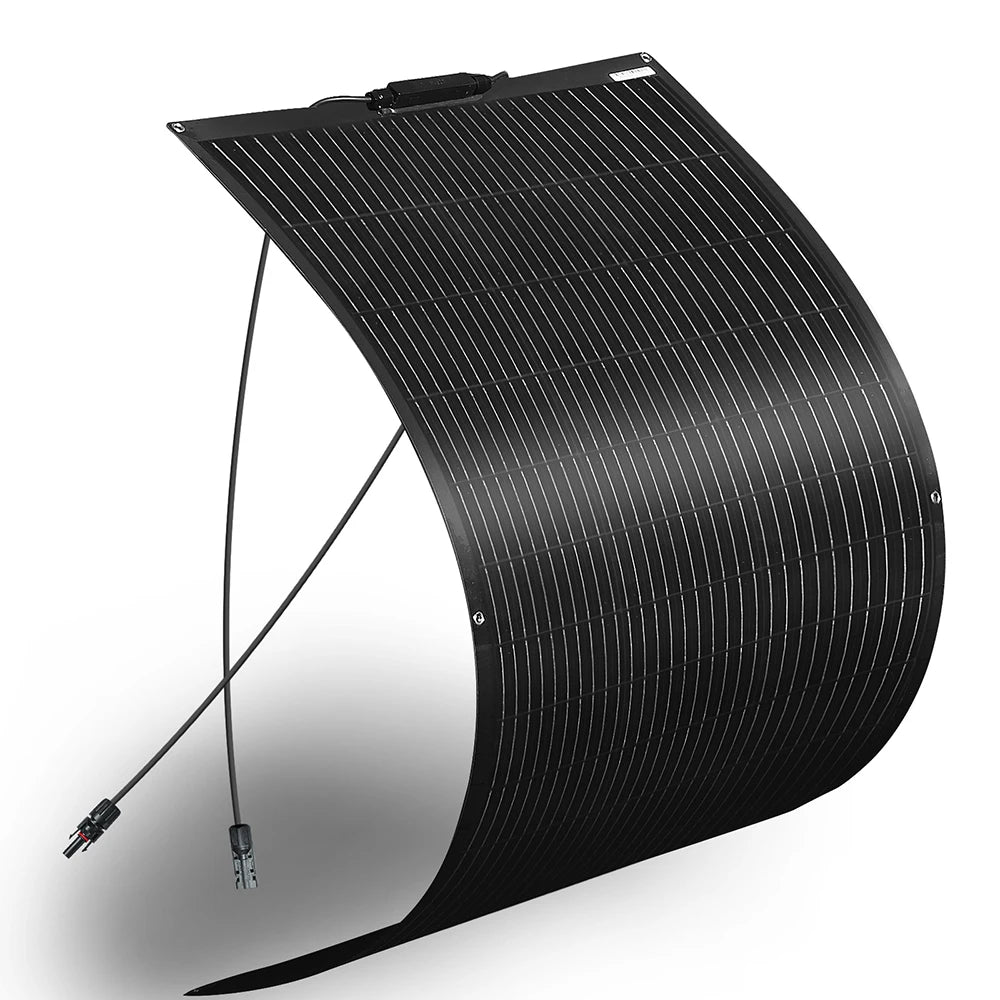

Output port 0.9 m long MC -4 connector wire

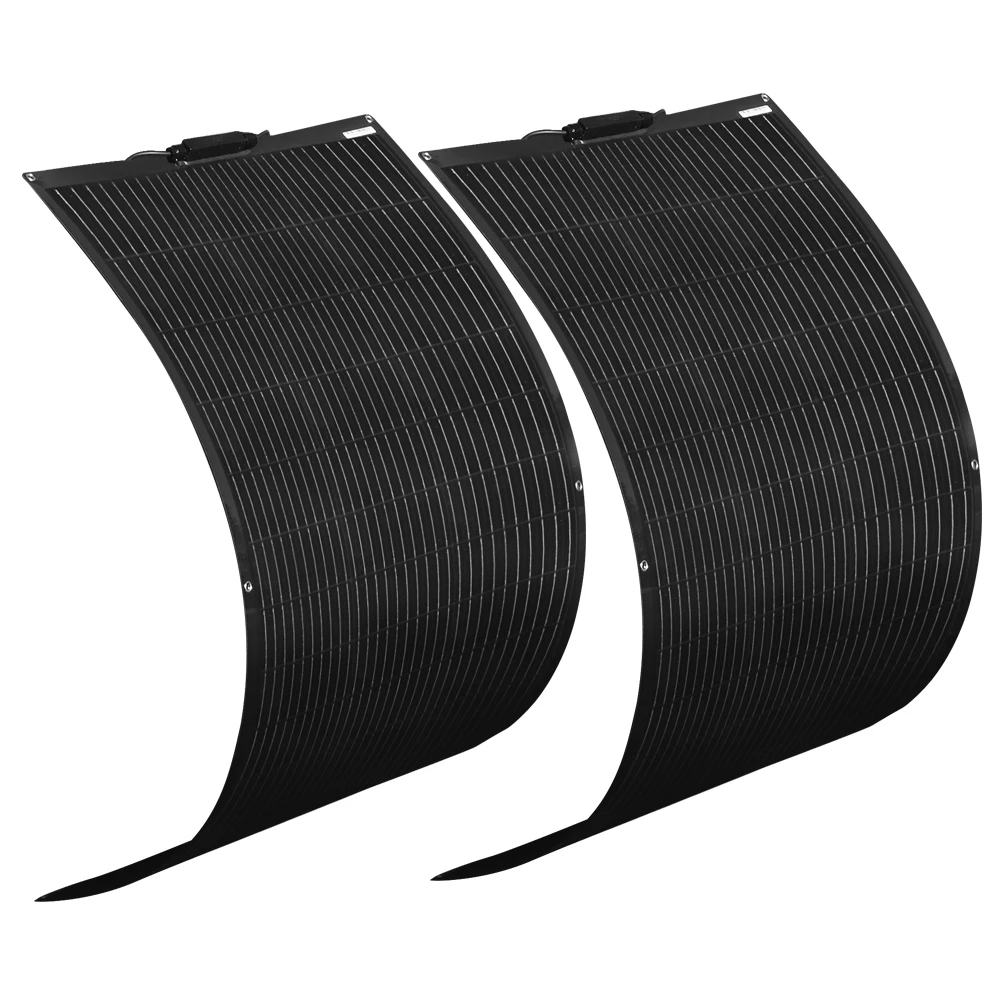

PERFECT FOR CURVED SURFACES

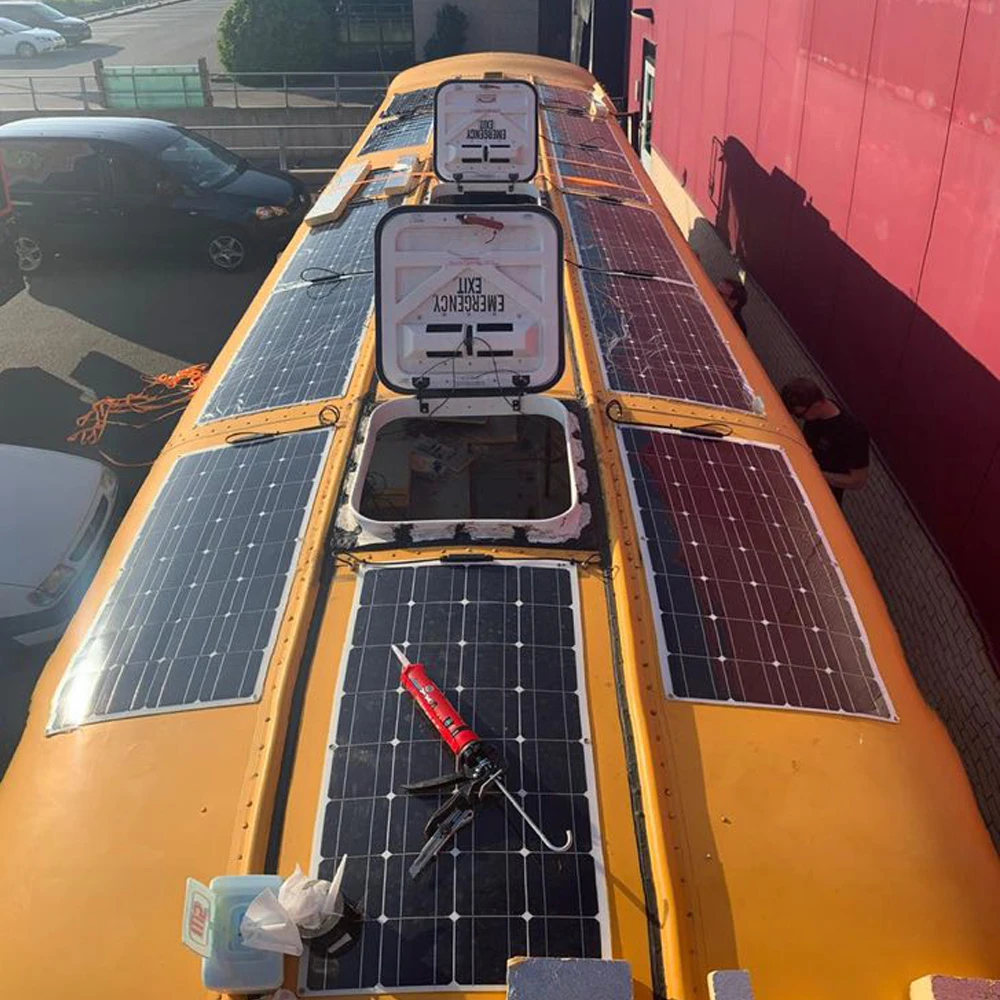

Designed so they can be easily fixed to your canopy, roof rack, trailer, caravan or even boat, these panels offer enough flex to be mounted on curves or uneven surfaces*.

HIGH QUALITY GRADE A MONOCRYSTALLINE SOLAR CELLS

Monocrystalline solar cells offer the best efficiency compared to polycrystalline or amorphous. Adventure xipuguang take it a step further by only using the highest quality GRADE A cells for even higher efficiency and up output.

TOUGH AND EASY TO CLEAN

They’re constructed with tough and durable PET (PolyEthylene Terephthalate) which is polished smooth so it’s easy to clean. Adventure Kings Semi-Flexible Solar Panels also have built in bypass diodes that mean if one cell is dirty or shaded the others will continue working at maximum efficiency.

Features:

a. Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power.
b. Using the latest component packaging technology, thinner, lighter, softer and longer life.
c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.
d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.
e. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.
f. Use photovoltaic special cable and pv connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. PV connector is easy to use, plug and play.
g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.

Notes for use:

a. This product must not come into contact with highly corrosive substances.
b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.
c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.
d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.
e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.
f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.

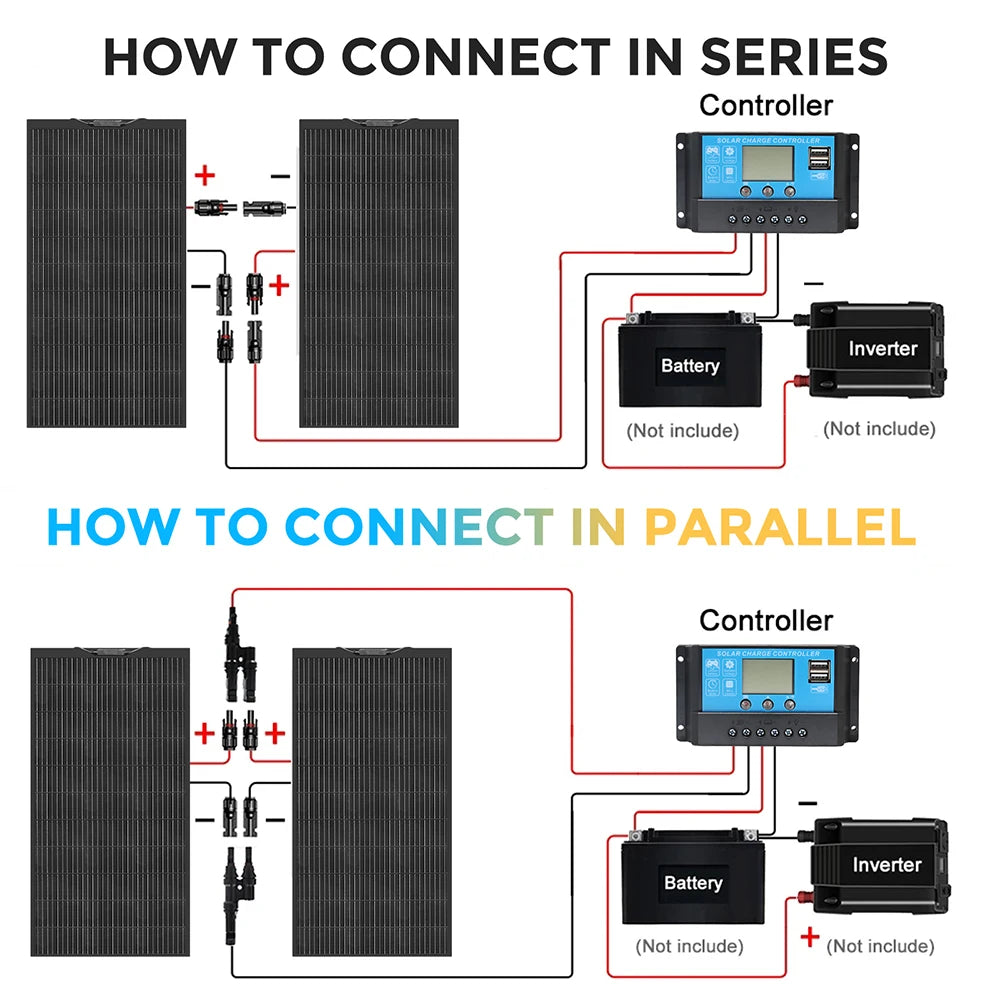

g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.
h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.
i. The inverter can only be connected to the battery, not directly to the controller.
