SPECIFICATIONS

Brand Name: NONE

Certification: CE,FCC,RoHS,UL,weee

High-concerned chemical: None

Model Number: CNMYPV140(66)M210

Origin:

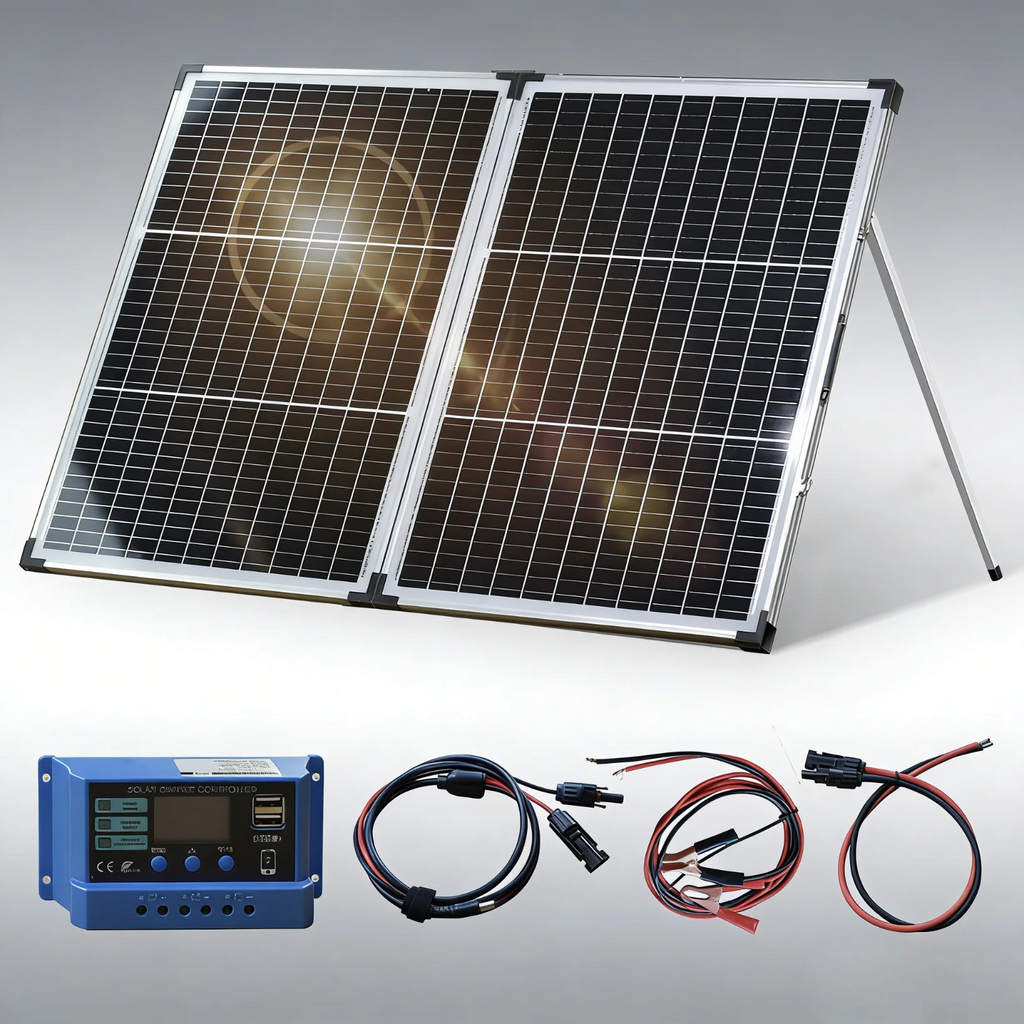

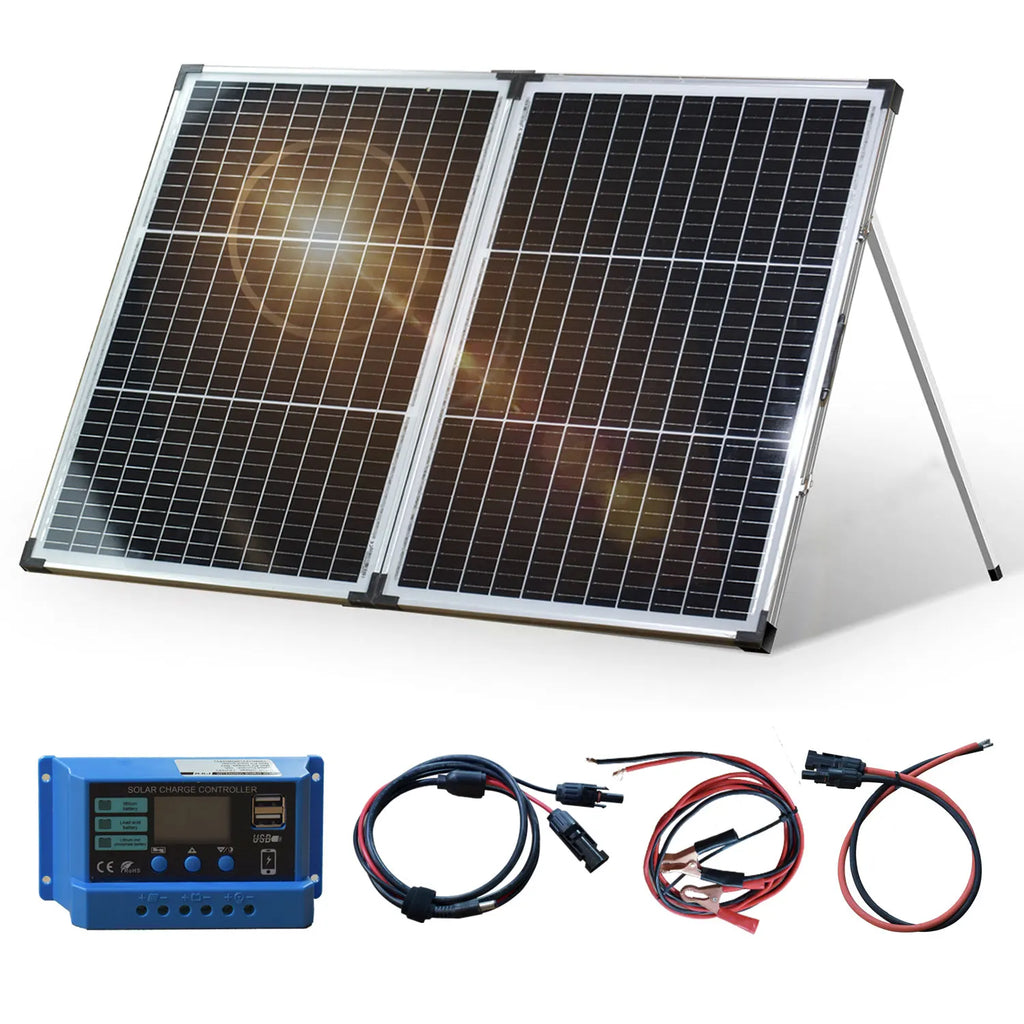

140w folding solar panel

140W SOLAR PANEL:  1

Model:CNMYPV140(66)M210

Material:Mono-crystalline silicon

Maximum Power(Pmax):140W

Maximum Power Voltage(Vmp):18.38V

Maximum Power Current (Imp): 7.62A

Open-Circuit Voltage (Voc): 22.06V

Short-Circuit Current (Isc):8.08A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Maximum System Voltage:DC1000V

Maximum Series Fuse:10A

Dimension:680mm*540mm*60mm

Package Weight:8.5kg

(The above data is based on the laboratory standard test environment

Easy operation Open the foldable solar panel, battery clips allow for simple connection to the battery. With handle, convenient to carry.

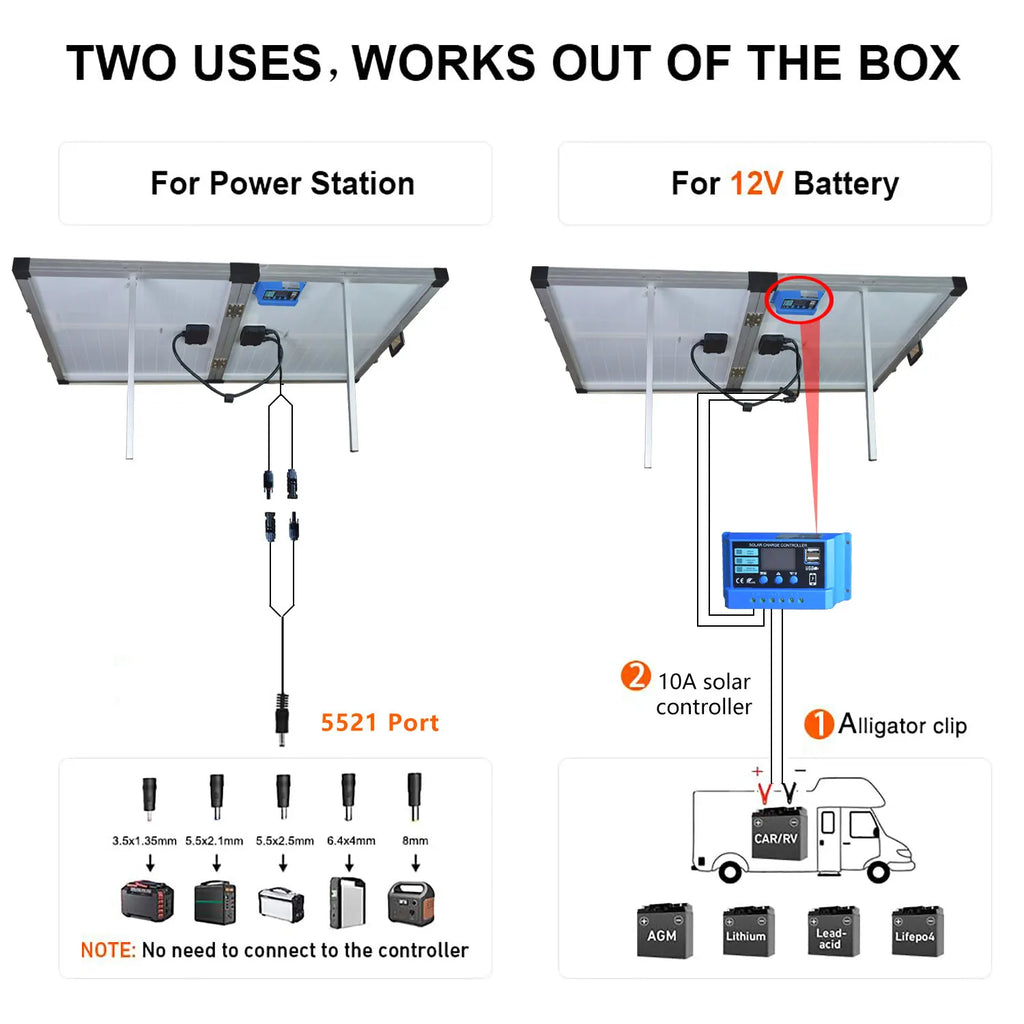

With high efficiency monocrystalline solar cell, pre-installed controller and pre-wired for 12V battery charging.

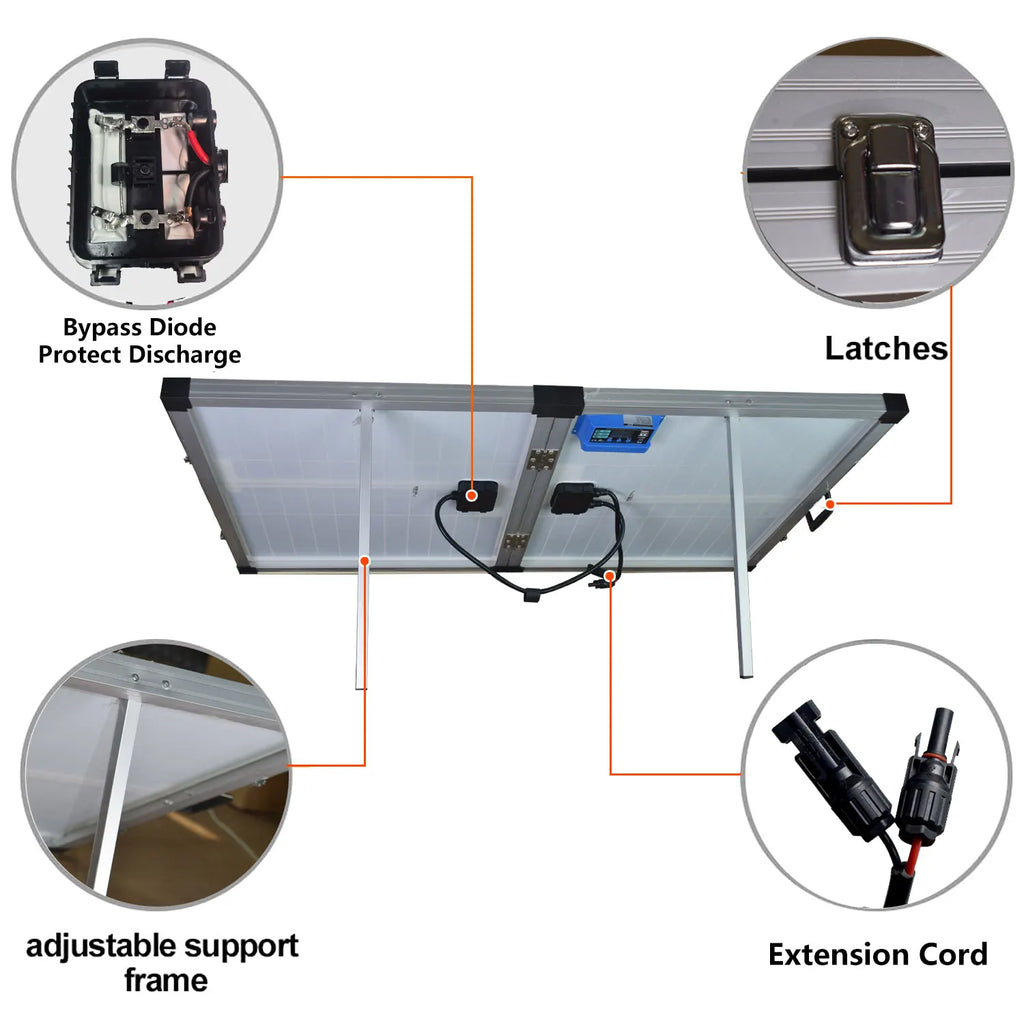

corrosion-resistant aluminum bracket as well as a sturdy handle and latches for durability.

Ideal for RV, hiking, camping, RV, boat, off-grid solar panel system etc.
