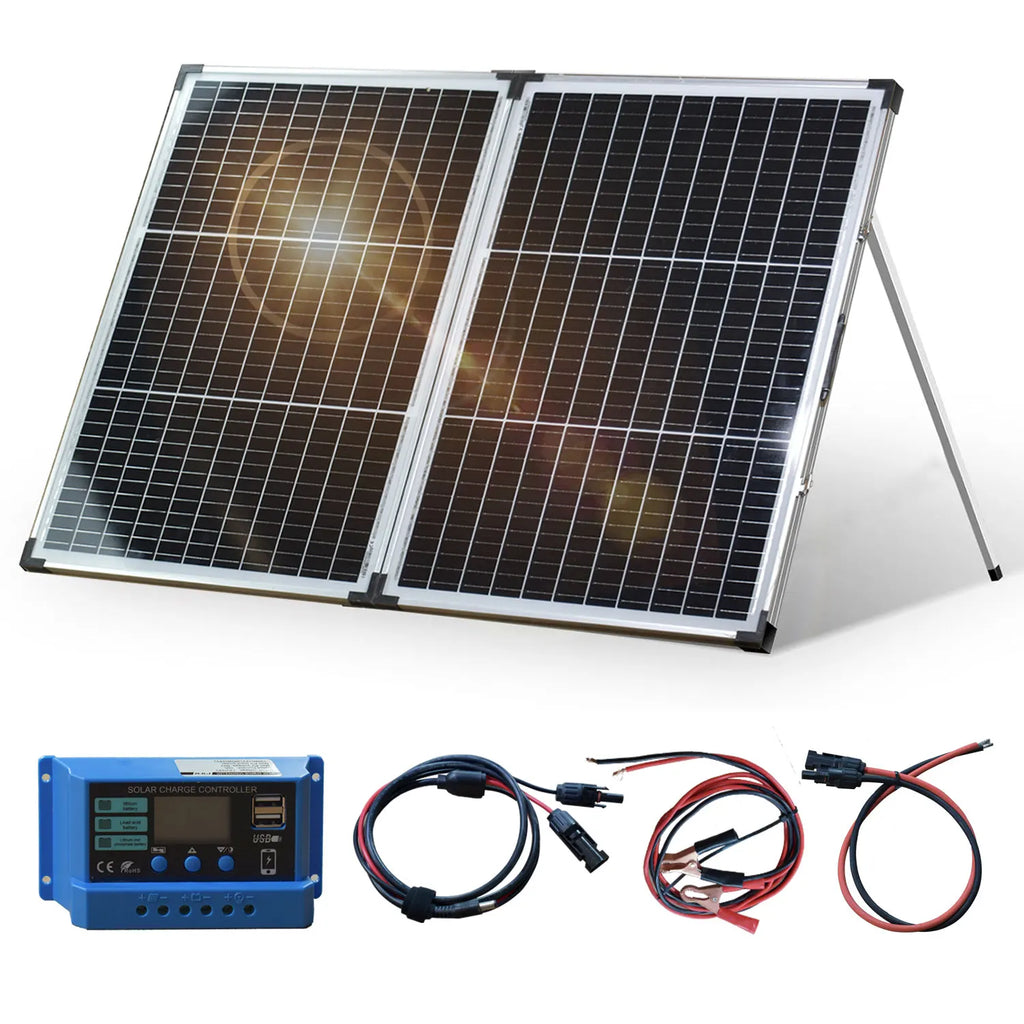

140W Folding Solar Panel, High Efficiency Monocrystalline Pv Module, Aluminum Frame, with Charge Controller, Outdoor Use, Camping
140W Folding Solar Panel, High Efficiency Monocrystalline Pv Module, Aluminum Frame, with Charge Controller, Outdoor Use, Camping
SPECIFICATIONS
Brand Name: JINGYANGPV
Certification: CE,RoHS,weee
Flexible Solar Panel: No
Foldable Solar Panel: Yes
High-concerned chemical: None
Material: Monocrystalline Silicon
Max. Power: 140W
Module Efficien: 24%
Nominal Capacity: 140W
Number of Cells: 2
Number of Panels: 2
Origin:
Rigid Solar Panel: Yes
Size: 68.5Cm*55.0Cm*7.0Cm
Type: Solar Panel
is_customized: Yes
140w folding solar panel
140w solar panel: 1
Model: cnmypv140(66)m210
Material: mono-crystalline silicon
Maximum power (pmax): 140w
Maximum power voltage(vmp):18.38v
Maximum power current (imp): 7.62a
Open circuit voltage (voc): 22.06v
Short-circuit current (isc):8.08a
Nominal operating cell temperature(noct):-45 to 80℃
Maximum system voltage: dc1000v
Maximum series fuse: 10a
Dimension: 680mm*540mm*60mm
Package weight: 8.5kg
(the above data is based on the laboratory standard test environment)
Kolay kullanım katlanabilir güneş panelini açın, pil klipsleri pilin kolay bağlantısını sağlar.Saplamı, taşıması kolay.

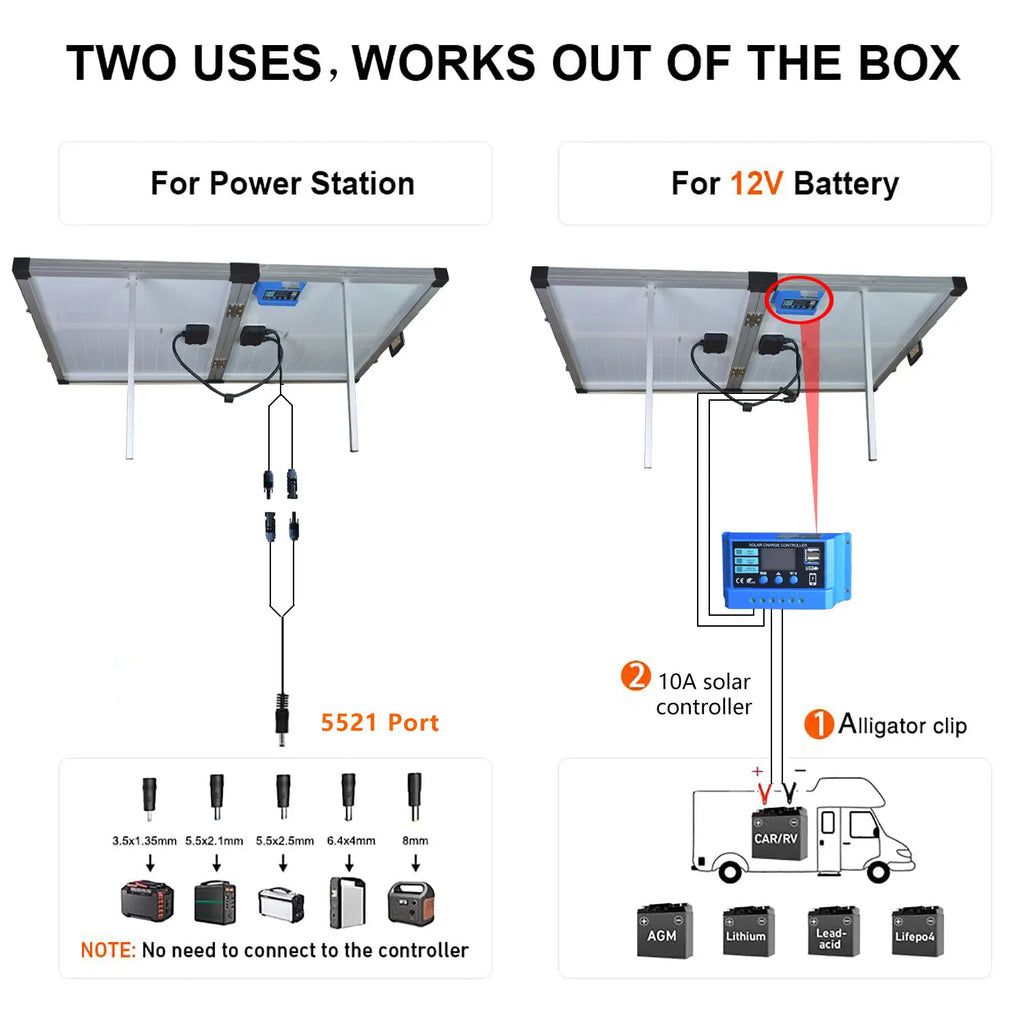

Yüksek verimli monokristal güneş pili, önceden monte edilmiş kontrol cihazı ve 12v akü şarjı için önceden kablolanmıştır.

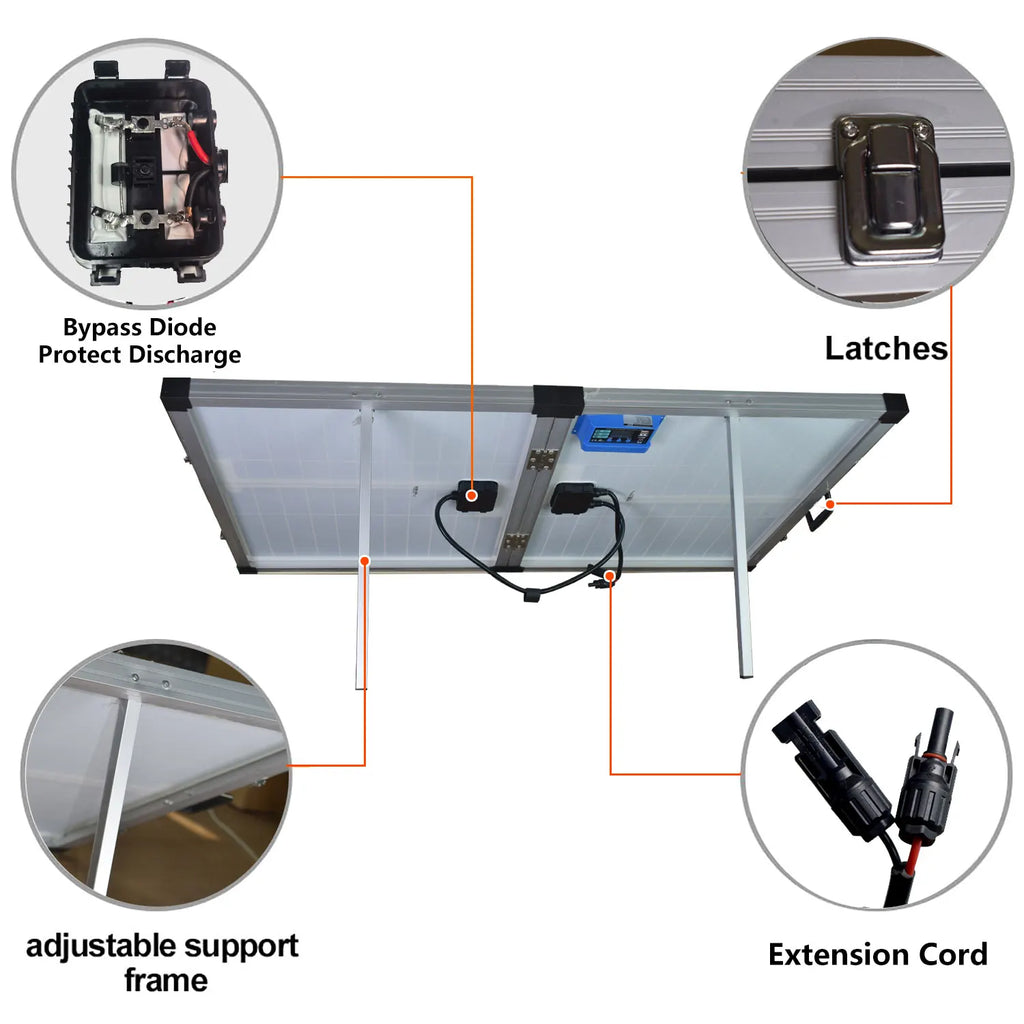

Koroziyona dayanıklı alüminyum braketin yanı sıra sağlam bir tutamak ve mandallar dayanıklılık sağlar.
Ideal for rv, hiking, camping, rv, boat, off-grid solar panel system, etc.
