200W Bifacial Rigid Solar Panel 18V Pv Solar Module for 12V 24V Battery Charge, Photovoltaic Solar Panels for Motorhome, Balcony
200W Bifacial Rigid Solar Panel 18V Pv Solar Module for 12V 24V Battery Charge, Photovoltaic Solar Panels for Motorhome, Balcony
SPECIFICATIONS
Brand Name: JINGYANGPV
Certification: CE,FCC,RoHS,UL,weee
Flexible Solar Panel: No
Foldable Solar Panel: No
High-concerned chemical: None
Material: Monocrystalline Silicon
Max. Power: 110
Model Number: Cnmypv100(32)M166
Module Efficien: 24%
Nominal Capacity: 100
Number of Cells: 32
Number of Panels: 2
Origin:
Rigid Solar Panel: Yes
Size: 100Cm*53Cm*3Cm
Type: Solar Panel
is_customized: Yes
Advantages of jingyang tempered solar panels:

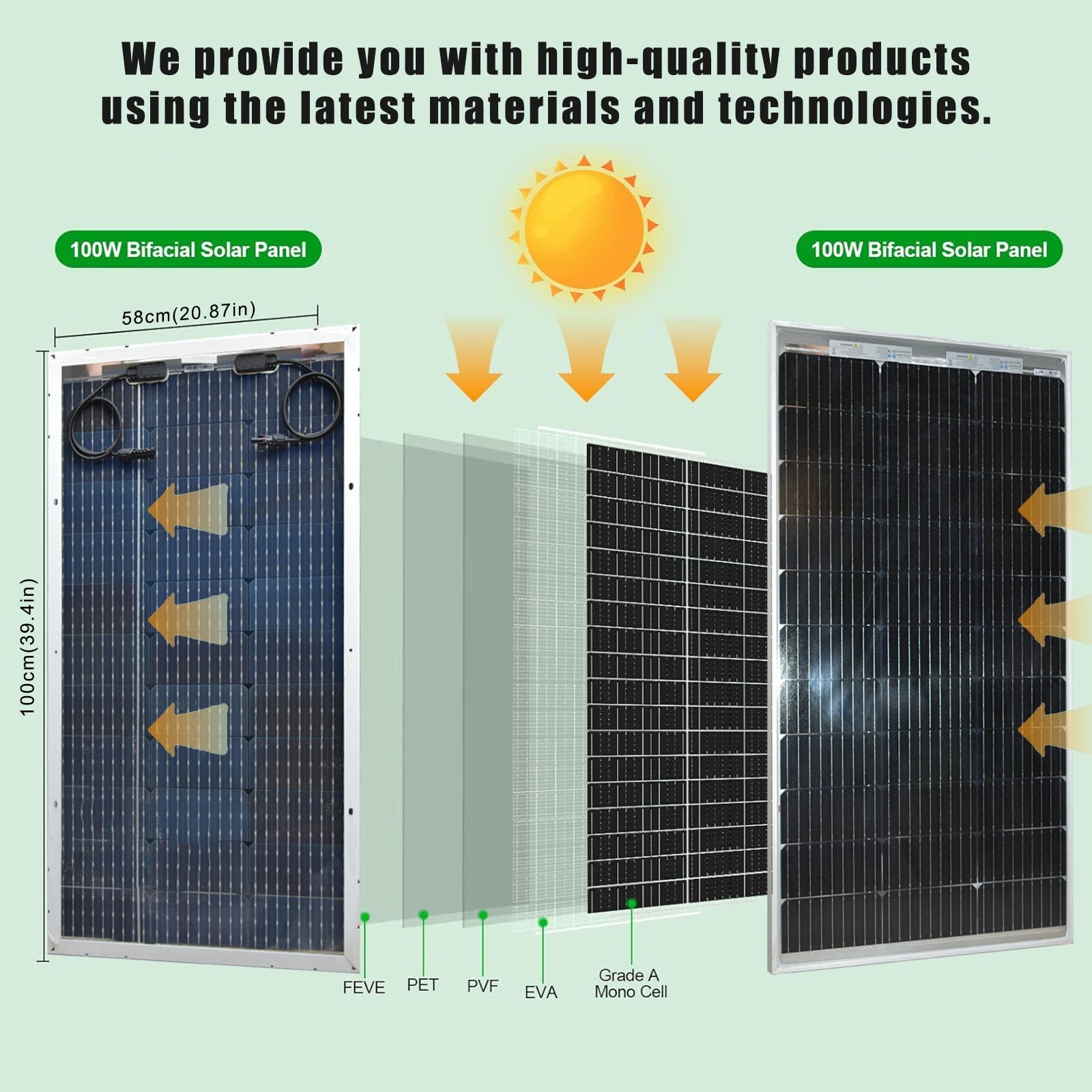

Multi-layer sheet package, sturdy and durable, good heat dissipation.No hot spots will appear.
The aluminum frame is corrosion resistant and is suitable for both indoor and outdoor use.
With a service life of more than 25 years, it is 3-4 times that of ordinary flexible solar panels.It is the best choice for motorhomes and families.It has a very high cost performance and is the best choice for home energy investment.
Product description:
Yüzeyi temperli camdır, su geçirmez, kar geçirmez, küçük doluya dayanıklıdır.
Diodes are pre-installed in junction box and a pair of 24-inch cables with connectors come with the panel automatically

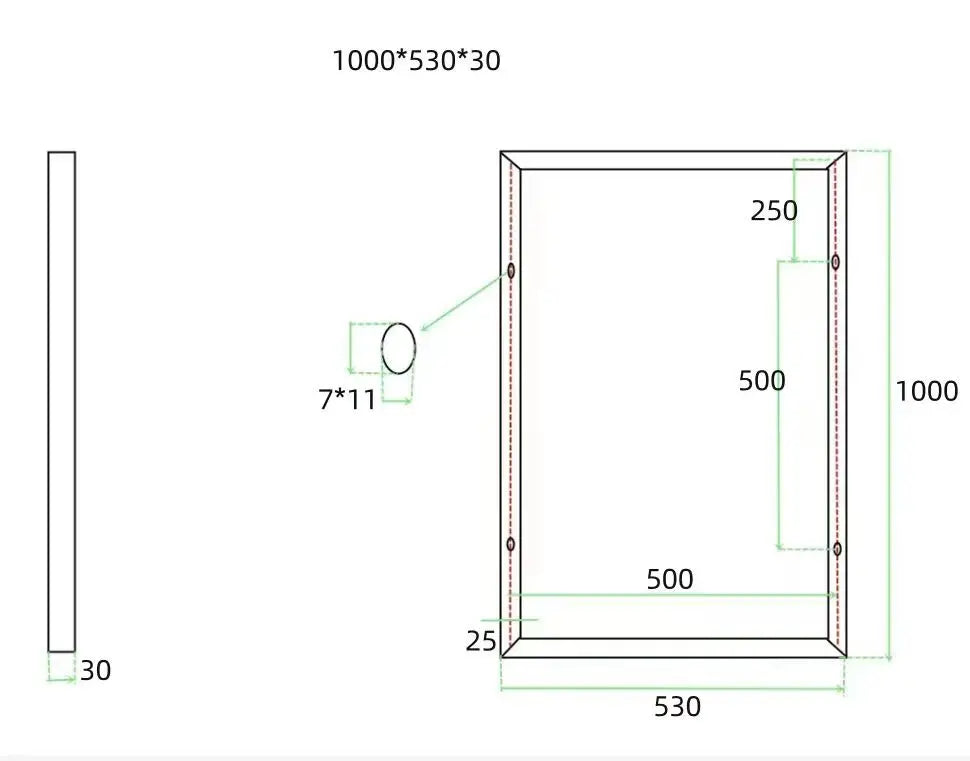

The back has 8 drill holes that can be quickly installed.
Model: cnmypv100(32)m166
Material: monocrystalline silicon
Maximum power (pmax): 100w
Maximum power voltage (vmp): 18.9v
Maximum power current (imp): 5.24a
Open circuit voltage (voc): 22.5v
Short-circuit current (isc): 5.65a
Solar cell: newly 166mm*166mm monocrystalline
Nominal operating cell temperature(noct):-45 to 80℃
Maximum system voltage: dc1000v
Maximum series fuse: 10a

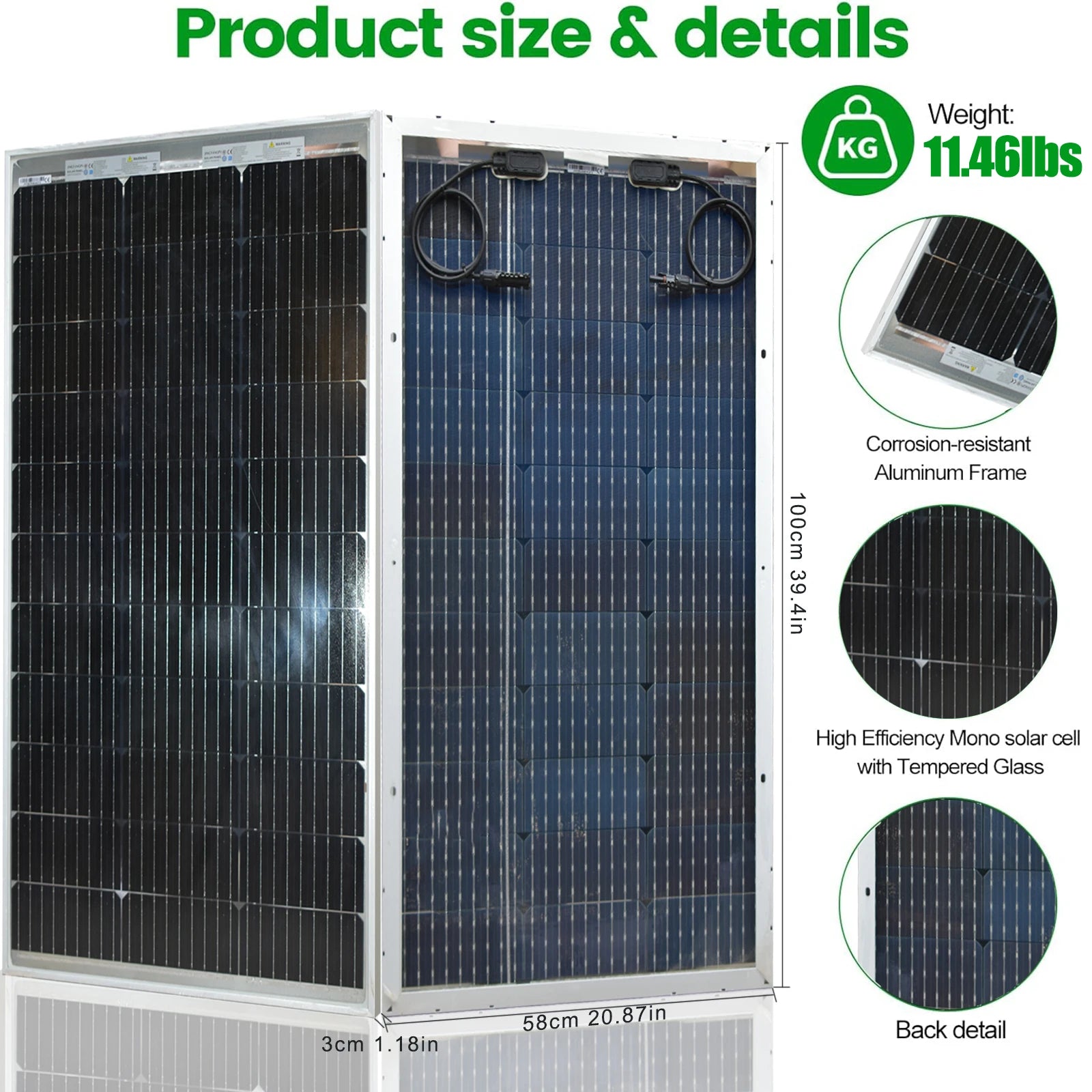

Dimension: 1000mm*530mm*30mm
Power tolerance: +/-3%
Package weight: 5.58kg
(the above data is based on the laboratory standard test environment)
5 years warranty, 25 years lifetime
Minor reduction in efficiency under partial load conditions at 25°c: at 100 w/m², 95% (+/-5%) of the stc efficiency (1000 w/m²) is achieved.
We reserve the right to modify the specifications of the data, and there may be a deviation of approximately ±5% in all specifications. please take this point into consideration.
