Details

Wide Shoulder Straps: This sprayer comes with two balance back straps, which can evenly distribute the pressure of the blower.

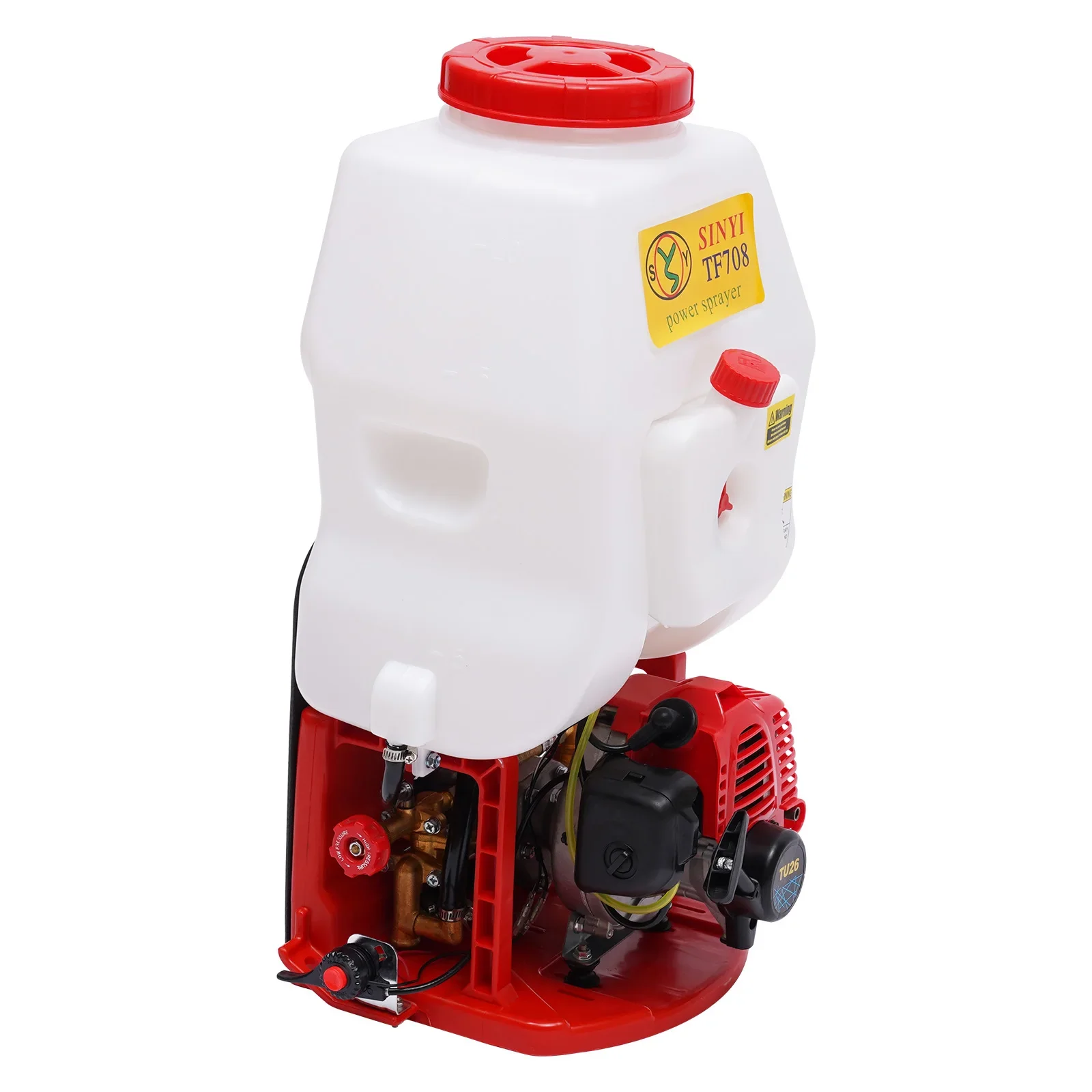

Throttle Handle and Red Button: There is a black throttle handle under the pressure valve of the sprayer, and the red button is the flameout switch. It is convenient for you to accurately distinguish and quickly turn on/off the machine.

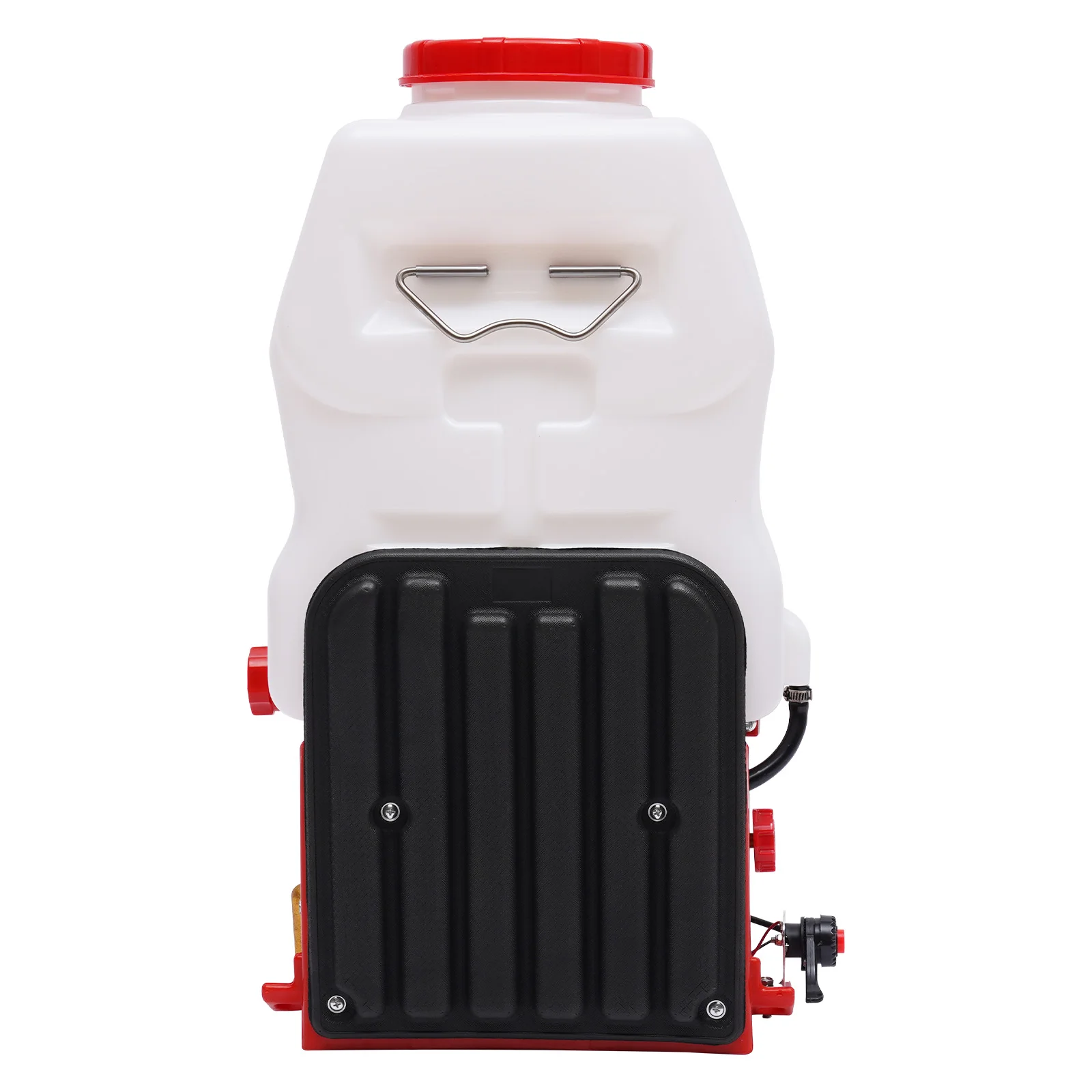

Foamed Sponge Back Cushion: This sprayer has a soft and comfortable back cushion. It can dampen vibrations, relieve shoulder pressure and reduce back impact.

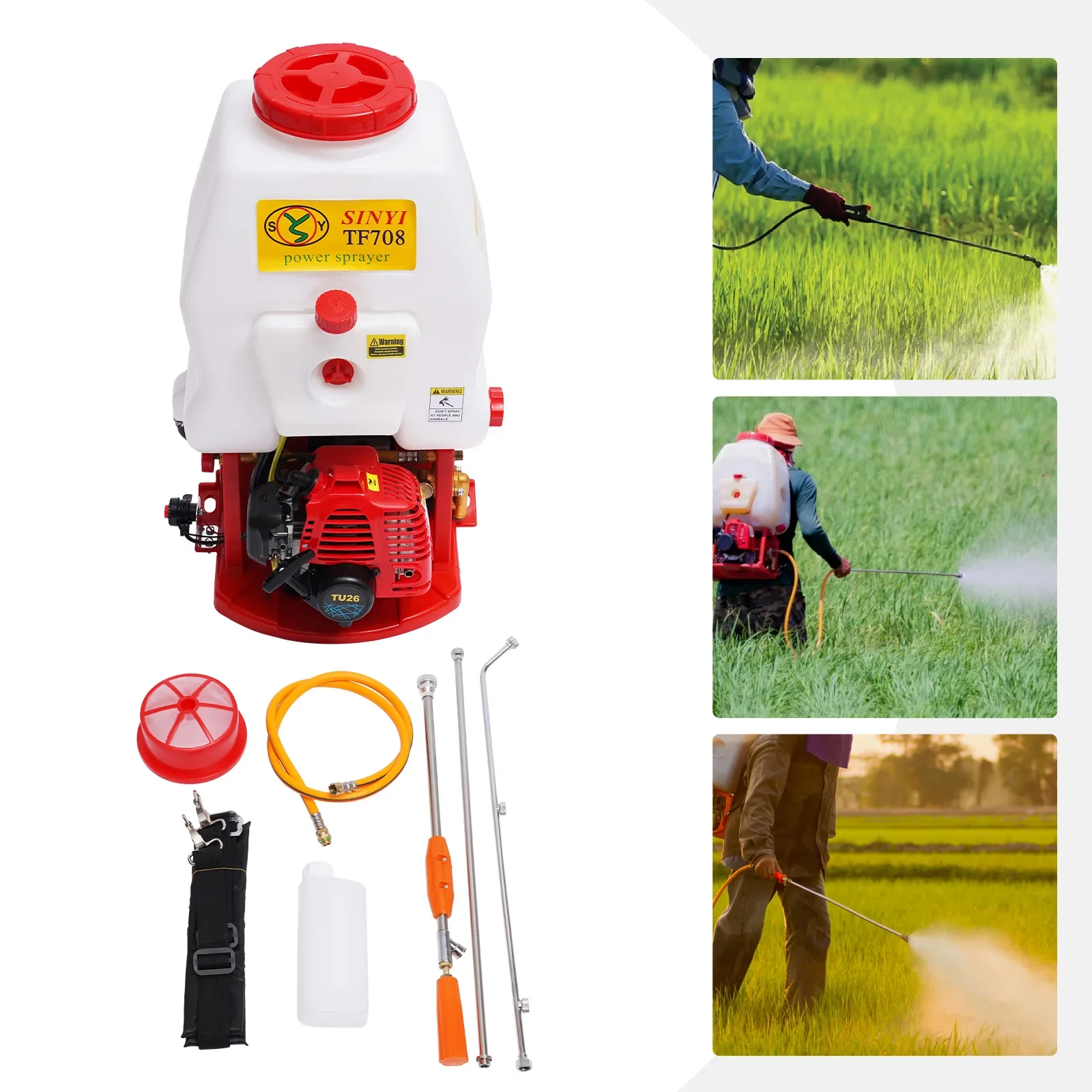

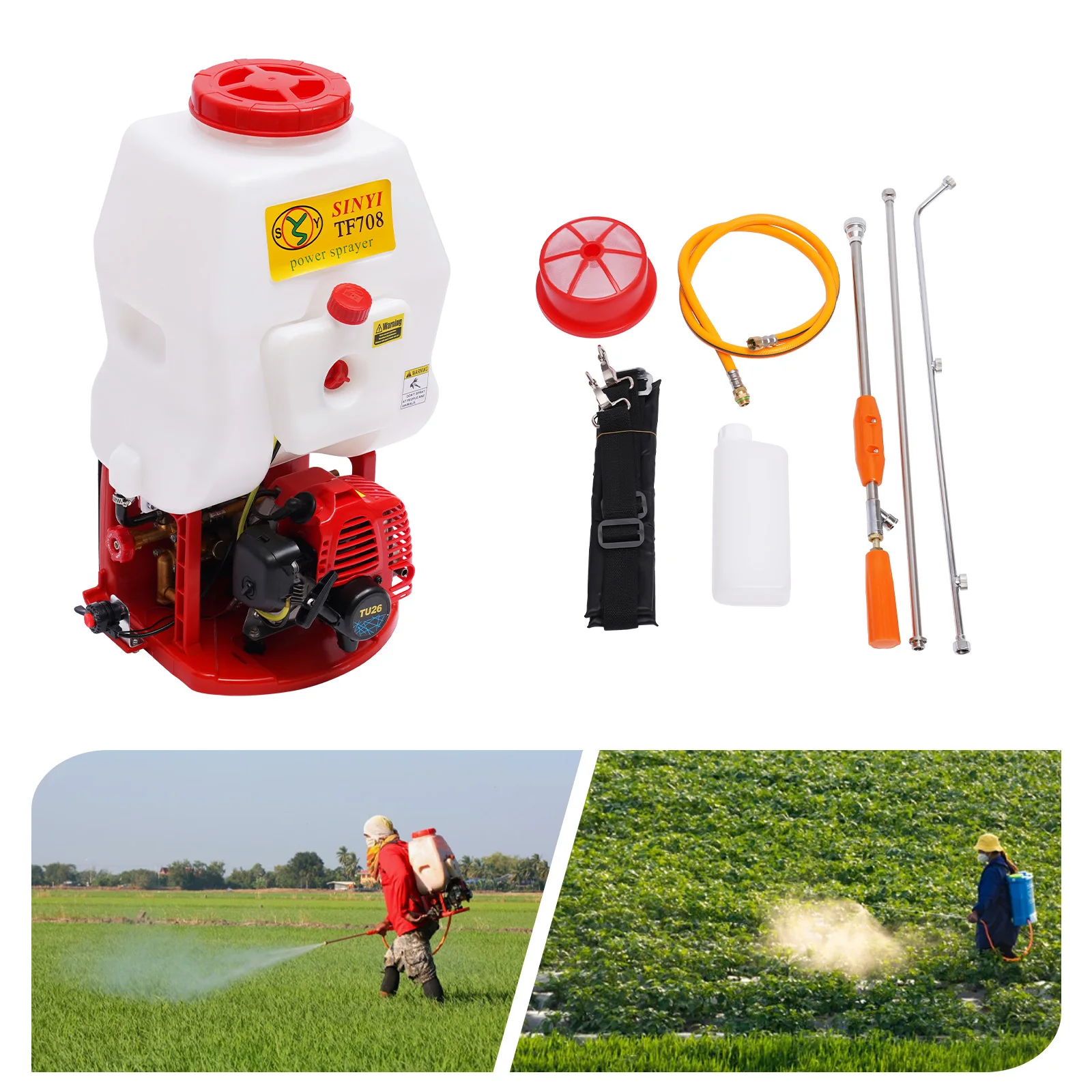

Application

You can use this sprayer to kill insects, disinfect, water, etc. It is suitable for use on farms, parks, gardens, yards, fields, etc.



Specification

Color: Red, White

Material: PP Plastic, Aluminum Alloy

Fan Rotation Speed :8500 (r/min)

Tank Capacity :20L/4.40gal(UK), 5.28gal(US)

Displacement: 25.4cc

Standard Power :0.7kw/6500-7500r/min

Mixed Fuel Ratio : 20~25:1

Working Pressure: 10-30kgf/cm2

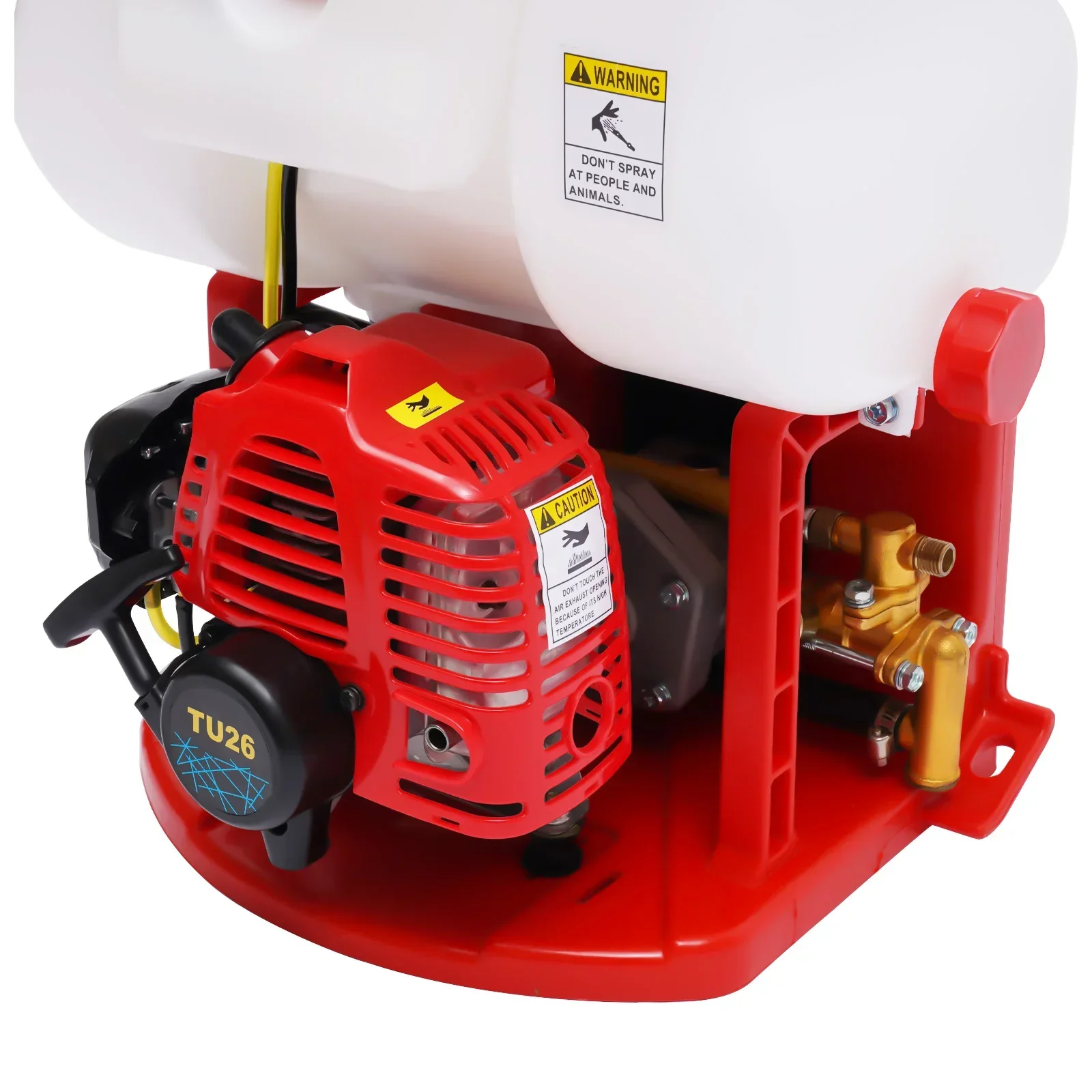

Spray Pump Type: High-pressure Pump

Fuel Tank Capacity: 1.1L/0.24gal(UK), 0.29gal(US)

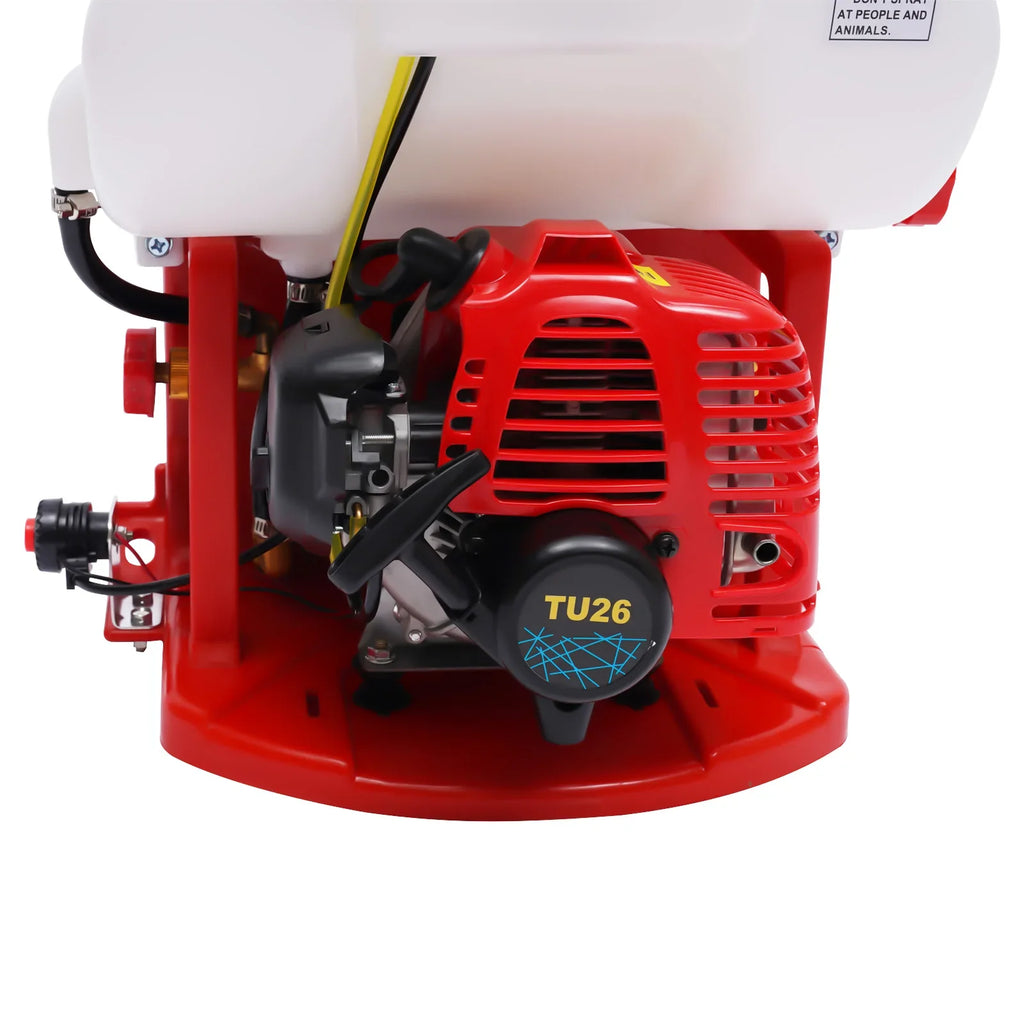

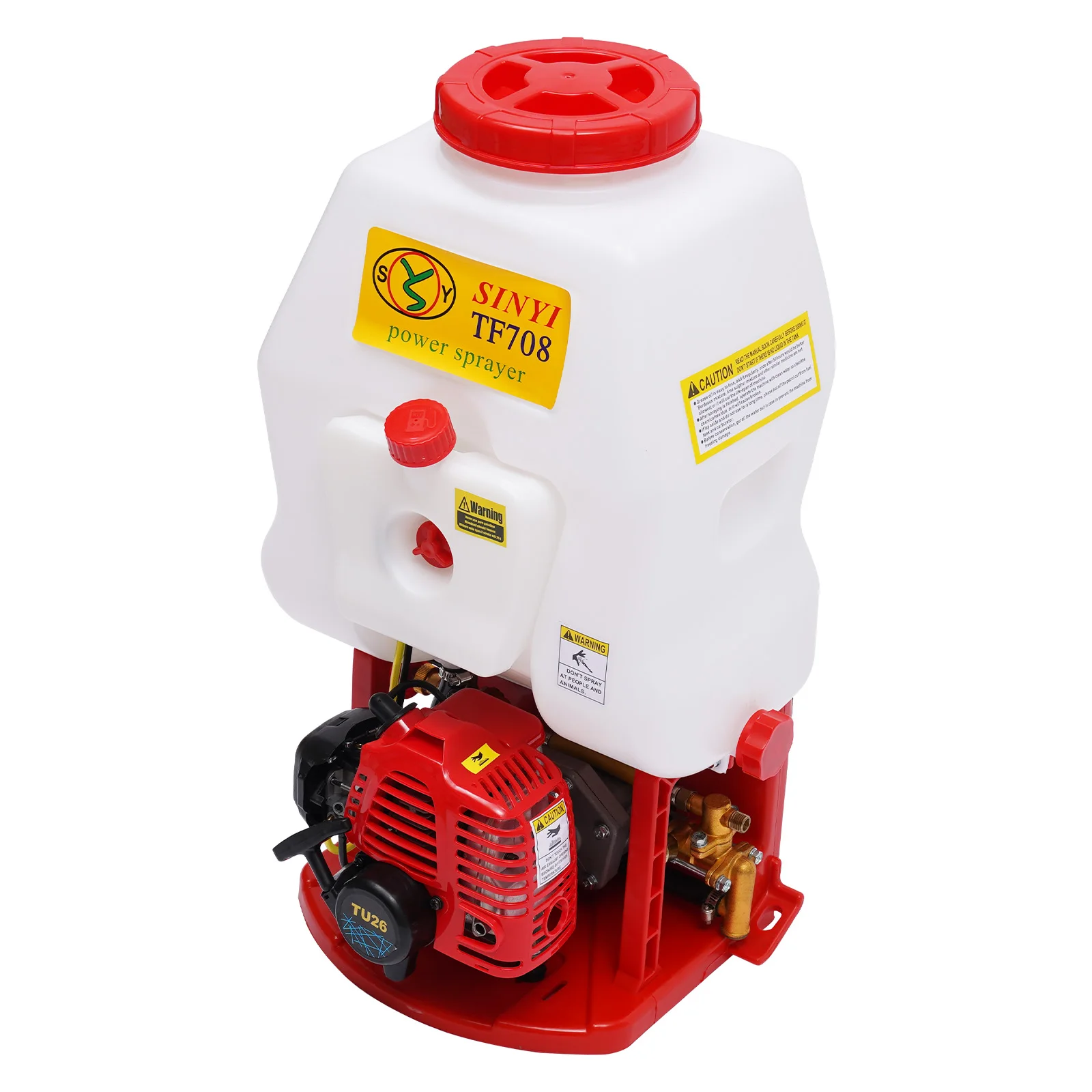

Engine Model: TU26

Water Absorption: 10L/min

Spray Amount: 8L/min

Spraying Range: 2-8m/6.56-24.25ft Parallel Spraying, 4-6m/13.12-19.69ft Height

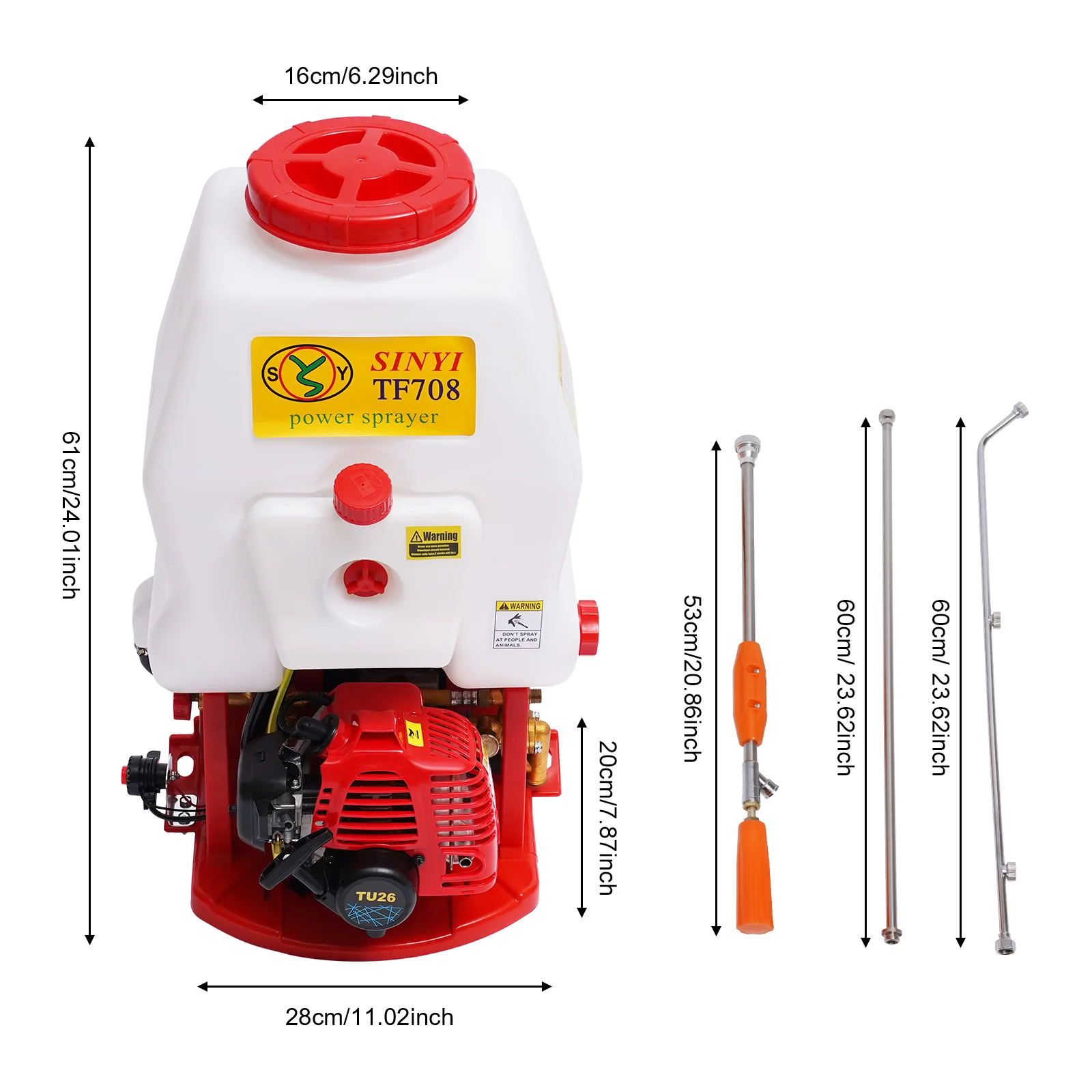

Nozzle Length: 53cm/20.86inch

Extension Rod Length: 60cm /23.62inch

Three Nozzles Rod Length: 60cm /23.62inch

Machine Size: 28*20*61cm/11.02*7.87*24.01inch

Package Size: 42*38*66cm/16.54*14.96*25.98inch

Gross Weight: 10kg/22lbs



How to Start

1. To fill the fuel tank with Mixed oil. The mixing ratio is 1:20-25 for FB/FC grade oil and 1:40-50 for FD grade oil.

2. Press the oil bubble under the carburetor until the fuel is filled with fuel.

3. Check that the red flameout switch is in a stationary state and close the damper.

4. Pull the start rope and turn the damper down after starting to open the damper.

5. If there is a start-up reaction that does not start, please increase the throttle slightly and pull the starter rope again. Or open the damper at the next pull.

6. After the startup is complete, open the damper.

7. Cycle acceleration heat engine. (Do not use a large throttle when there is no water in the tank.)

8. In the first 10 hours, the oil mixing ratio is slightly thicker, and then according to the normal ratio.

9. Adjust the high-pressure pump return water switch, the water returning clockwise becomes smaller, and the counter-clockwise return water is large, generally placed in the middle position. Never turn off the return water completely. The job is to adjust if the spray pressure is reduced or the engine load is increased.

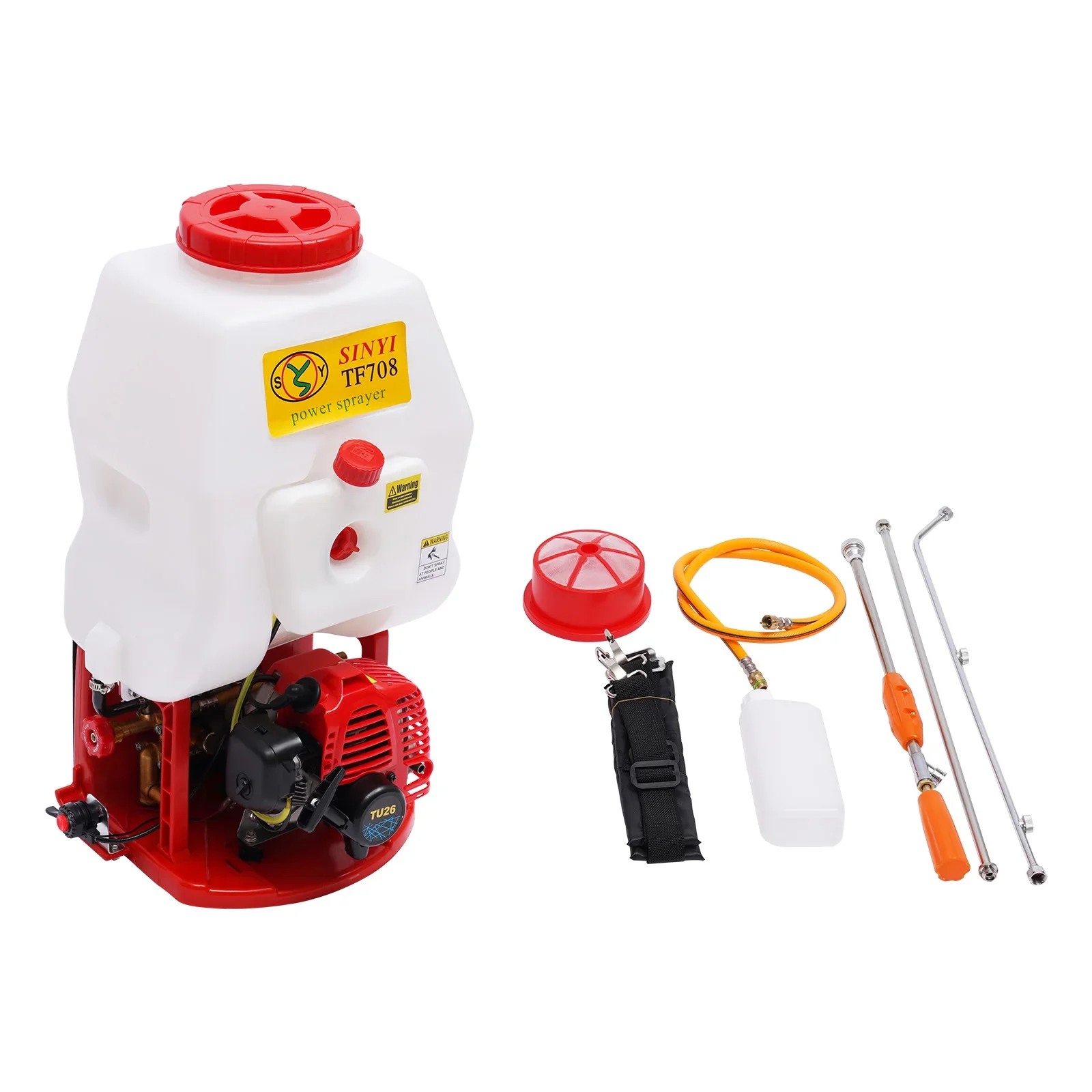

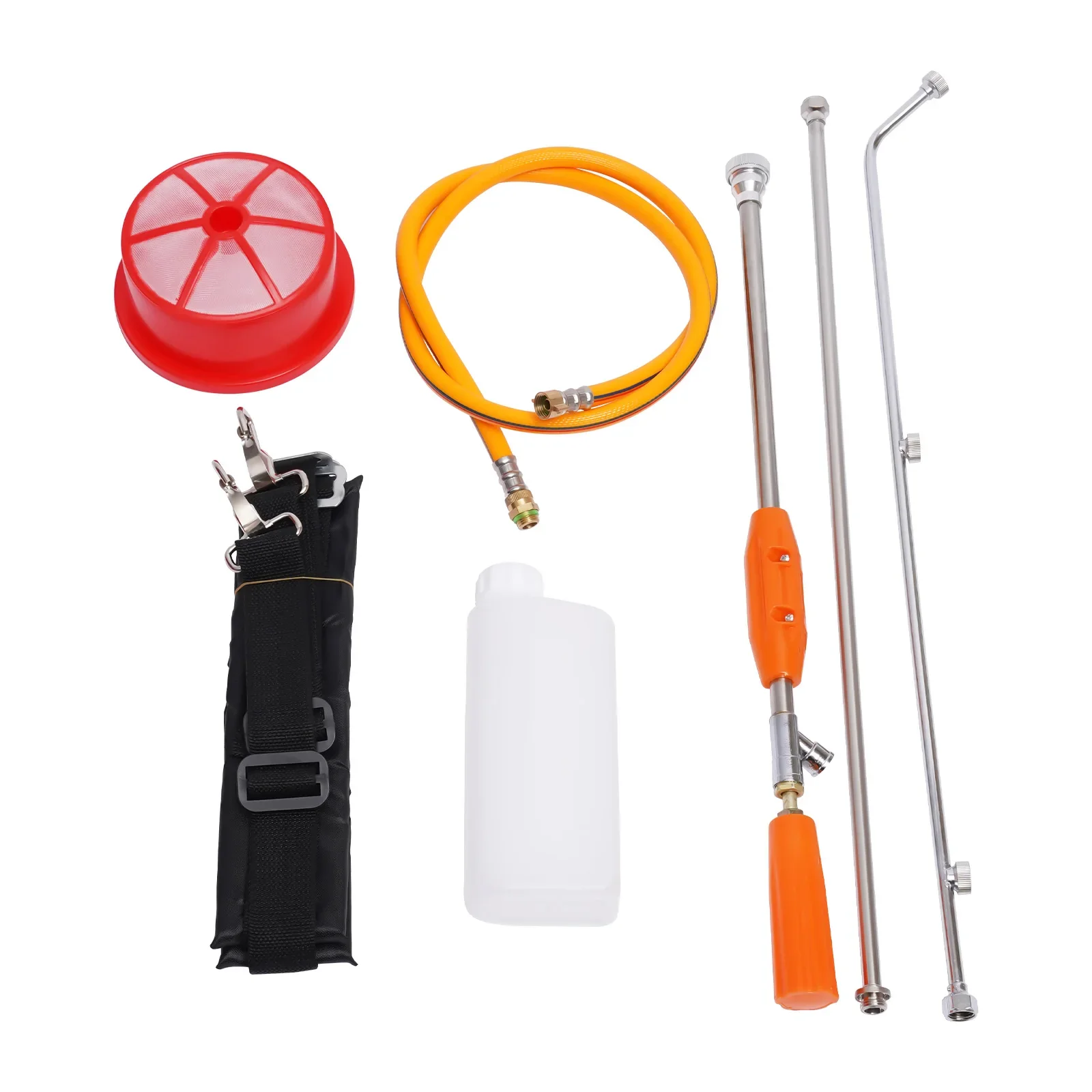

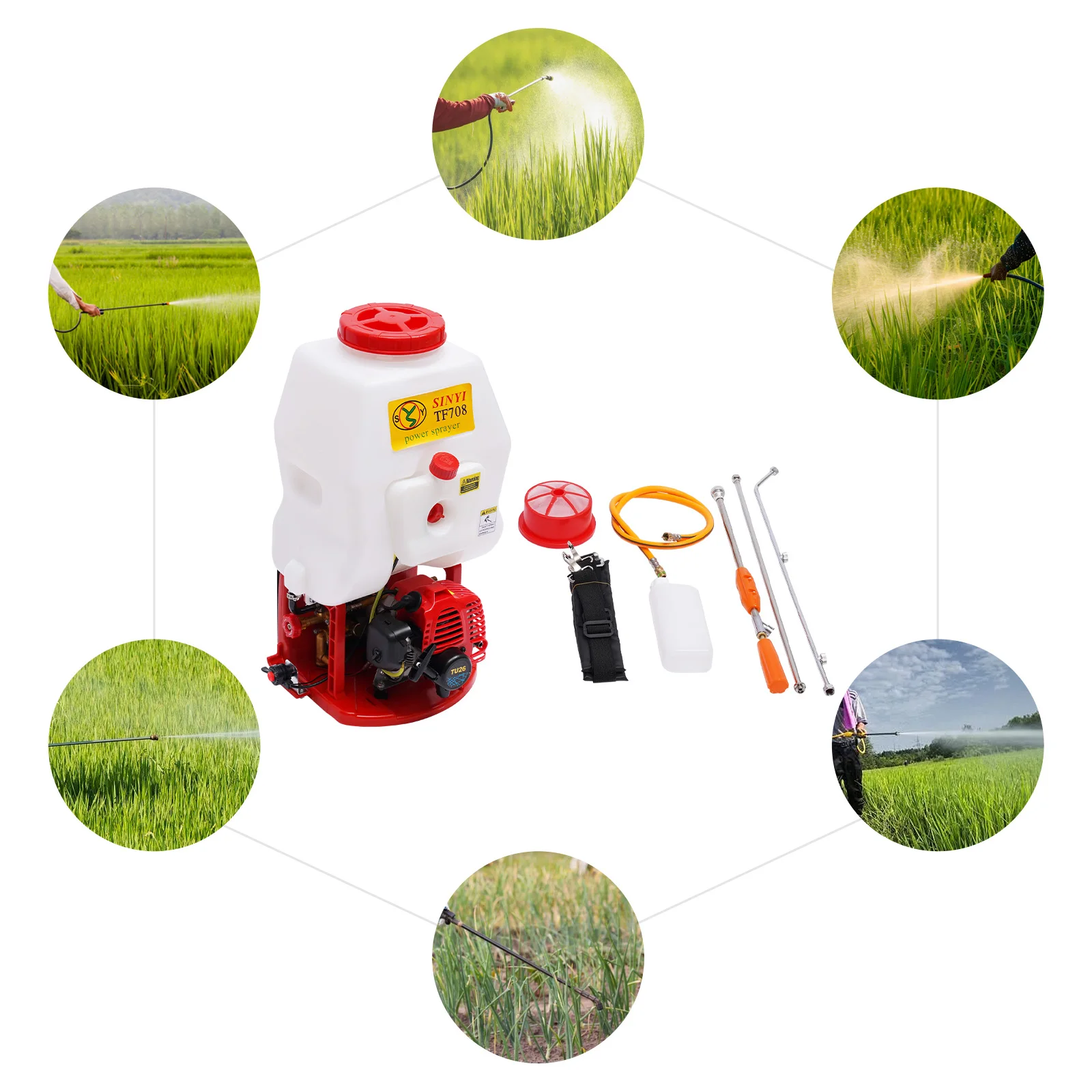

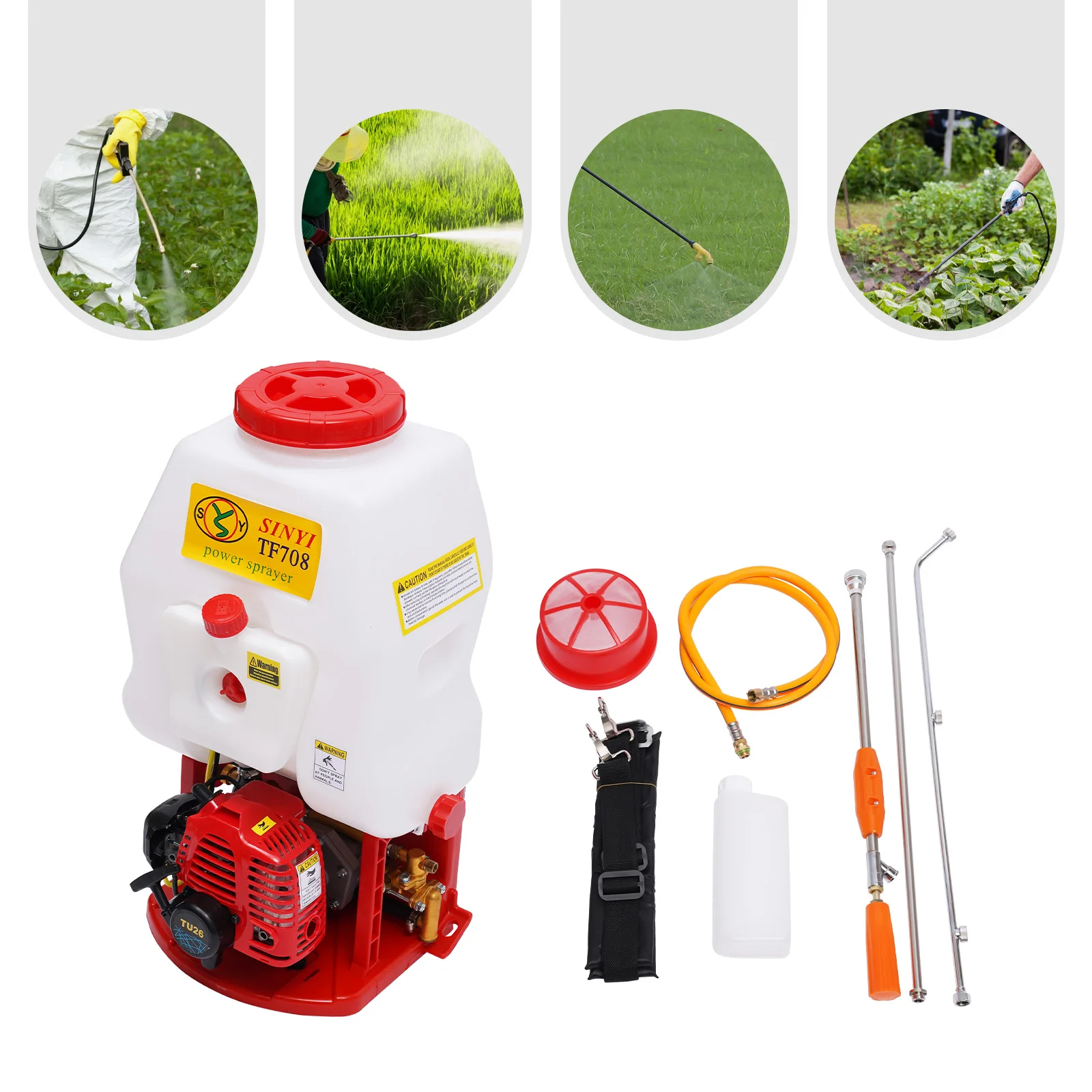

Package Included

1* Sprayer

1* Filter

1* Water Tube

1* Bottle

3* Rods

2* Straps



Notes

Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
